Charge Air Cooler Position - GF09.41-P-3100-02AM

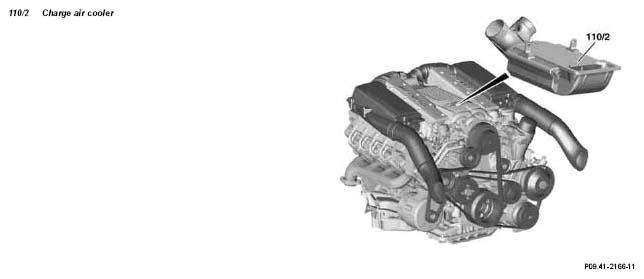

Fig 1: Identifying Charge Air Cooler Position
G04840029Courtesy of MERCEDES-BENZ USA

The Charge Air Cooler Is Located In The V Angle Of The Engine Below The Compressor.
