Charge Air Cooler Circulation Pump Relay - Location/Task/Design/Function - GF09.41-P-3106AM: Notes
Engine 113.990 /991 /992 /993 /995
| Relay for the charge air cooler recirculation pump - location | Models 211, 219 | GF09.41-P-3106-01TA | |
| Models 215, 220 | GF09.41-P-3106-01M | ||
| Model 230 | GF09.41-P-3106-01R | ||
| Model 463 | GF09.41-P-3106-01GA | ||
| Relay for the charge air cooler recirculation pump - task | The circulating pump relay actuates the charge air cooler circulation pump (M44). | ||

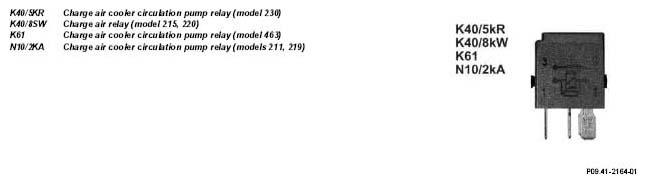

| Relay for the charge air cooler recirculation pump - design | The relay for the charge air cooler recirculation pump is a 4-pin plug-in relay. | ||
| Relay for the charge air cooler recirculation pump - function | On actuation through the ME-SFI [ME] control unit (N3/10) by a ground signal, the power supply contact closes and thus supplies the charge air cooler recirculation pump with a voltage from circuit 87. |
