Universal Portable CTEL Interface (UPCI [UHI]) control unit, location/task - GF82.70-P-5100RBU

MODEL 230 as of 1.4.06 with CODE (494) USA version

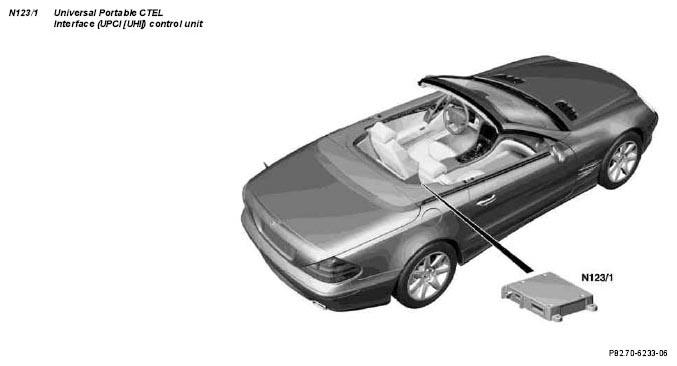

Fig 1: Identifying Universal Portable CTEL Interface Control Unit Location
G05075689
  UPCI (Universal Portable CTEL Interface) control unit, location The Universal Portable CTEL Interface (UPCI [UHI]) control unit (N123/1) is installed under the trim behind the front passenger seat.
  UPCI (Universal Portable CTEL Interface) control unit, task The UPCI (Universal Portable CTEL Interface) control unit (N123/1) enables the portable CTEL (A34/6) to be connected to the vehicle.
