Determine remaining distance of brake pads - AP42.10-P-4253-03EW

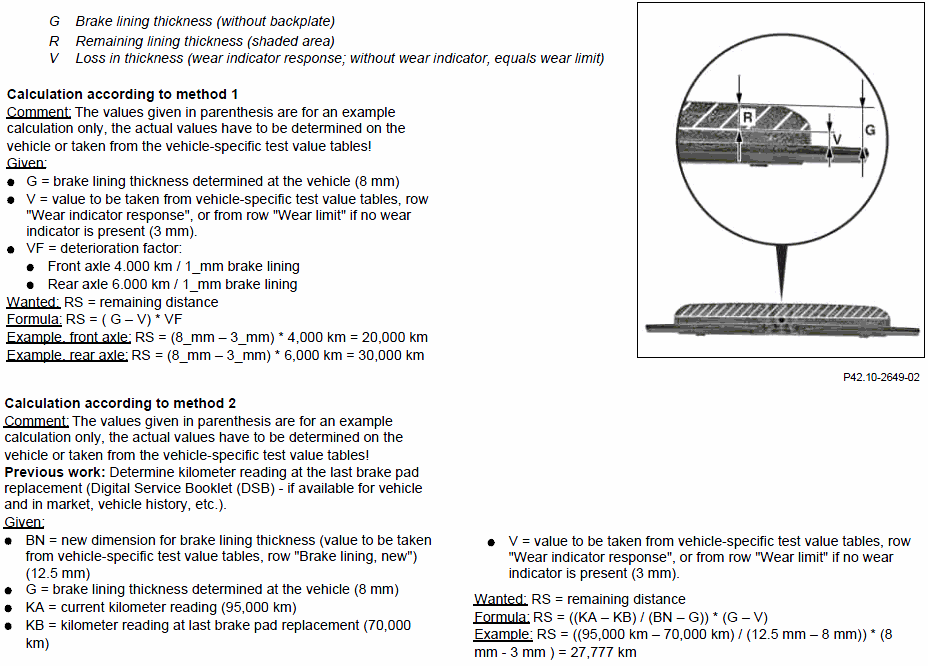

Fig 1: Determining Remaining Distance Of Brake Pads (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Determining Remaining Distance Of Brake Pads (2 Of 2)

Courtesy of MERCEDES-BENZ USA
