Remove/install luggage box cover in rear - AR68.30-P-7440-01R

  1. Open luggage box (1) cover (2)
  2. Remove wiring harness (3) from bracket (4) and lay down to side together with vacuum line (5).
  3. Release catch hooks (3) one after another. Simultaneously pull cover (2) out of mounts on luggage box (1)
  4. Install in the reverse order.

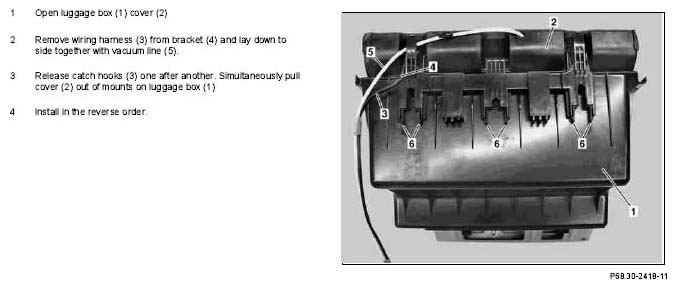

    Fig 1: Identifying Luggage Box Cover In Rear Components
    G05076248Courtesy of MERCEDES-BENZ USA
