Remove/install cover on gearshift lever - AR68.20-P-2310R

MODEL 230.4 (except 230.470)

except CODE (P99) "AMG Black Series" special model

Shown on vehicle with transmission 722

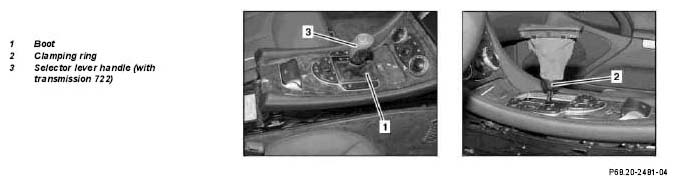

Fig 1: Identifying Cover On Gearshift Lever Components - Shown On Vehicle With Transmission 722

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Secure vehicle against rolling
2	Switch on ignition, actuate brake pedal and shift to selector lever position "N"	On vehicles with transmission 722
3	Switch off ignition and remove transmitter key from EIS control unit	On vehicles with code (889) Keyless Go, press Keyless Go start/stop button repeatedly until the ignition is switched off. Remove Keyless Go transmitter card or transmitter key from vehicle and store beyond reach of transmitter (min. 2 m).
4	Unclip boot (1) with mounting wedge.		Figure
5	Move selector lever to position "P"	On vehicles with transmission 722
6	Put boot (1) over selector lever handle (3) or shift lever handle.
7	Turn clamping ring (2) approx. 90° counterclockwise and remove selector lever handle (3) or shift lever handle together with boot (1).
8	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
