Arrangement and assignment of the wiring and plug connectors, engine compartment (right) - GF00.19-U-1000-02KA

MODEL 230

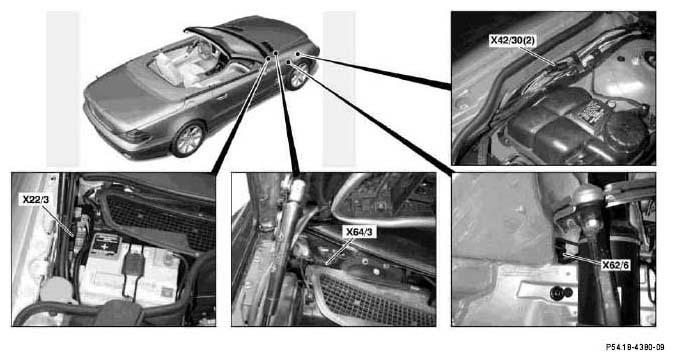

Fig 1: Identifying Arrangement And Assignment Of Wiring And Plug Connectors, Engine Compartment (Right)
G05075104Courtesy of MERCEDES-BENZ USA
Short designation Designation Cable colors Cable colors Note
X22/3 Coolant or transmission oil cooling connector BUWH PLUG 1 SOCKET BUWH
    BKBU PLUG 2 SOCKET BKBU
X42/30 ATA hood contact connector BNBU PLUG 2.1 SOCKET BNBU
    BN PLUG 2.2 SOCKET BN
X62/6 Right front axle multiple circuit junction connector, in component compartment PLUG 1 SOCKET BN
    PLUG 2 SOCKET BNRD
    PLUG 3 SOCKET BUYE
    PLUG 4 SOCKET BUGN
X64/3 Wiper park heater connector BN PLUG 1 SOCKET BN
    BK PLUG 2 SOCKET BK
