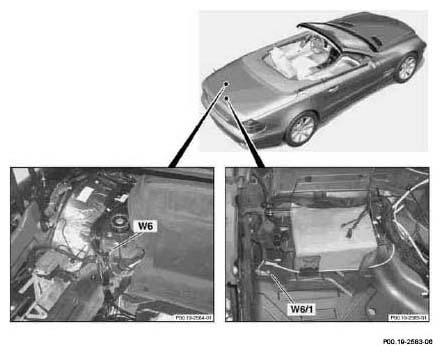

Arrangement and assignment of ground terminals, trunk (left) - GF00.19-U-2000-06KA
MODEL 230
| Ground point | Designation | Component | Designation | Connector Pin | |
|---|---|---|---|---|---|
| W6 | Ground (left wheel well in trunk) | → A37 | PSE control module (combined) | 1.6 | |
| → B33 | ATA [EDW] inclination sensor | 5 | |||
| → E3 | Left taillamp | 6 | |||
| → N62 | PTS control module | 1.10 | |||
| up to 05/05 | → N88 | TPM control module | 16 | ||
| as of 06/05 | → N88 | TPM control module | 8 | ||
| → R1 | Heated rear window | 1 | |||
| as of 09/03 | → S69/11 | Vario-roof "open/lowered" limit switch | 1 | ||
| as of 09/03 | → S69/3 | Vario-roof "locked" limit switch (left rotary tumbler) | 1 | ||
| → S118/1 | Left tubular frame locked limit switch | 1 | |||
| as of 09/03 | → S117 | Loading assist up/down limit switch | 1 | ||
| → Y55/1 | RVC [UVS] valve block | 5 9 10 |
|||
| W6/1 | Ground (left taillamp in trunk) | → A7/5 | RVC [UVS] hydraulic unit | 2 5 |
|
| → A7/8 | RTL hydraulic unit | 2 5 |
|||
| → E19/1 | Left license plate lamp | 1 | |||
| → S119 | Tubular frame open limit switch | 1 | |||
| → S88/10 | Trunk lid emergency release switch | 1 | |||
| → S124 | Trunk lid opened limit switch | 1 | |||
| → S126/1 | Left side flap closed/opened limit switch | 1 | |||
| → Y65/3 | CL [ZV] remote trunk lid opening valve | 1 | |||
| → Z6/92 | Trunk lid ground connector sleeve | ||||
