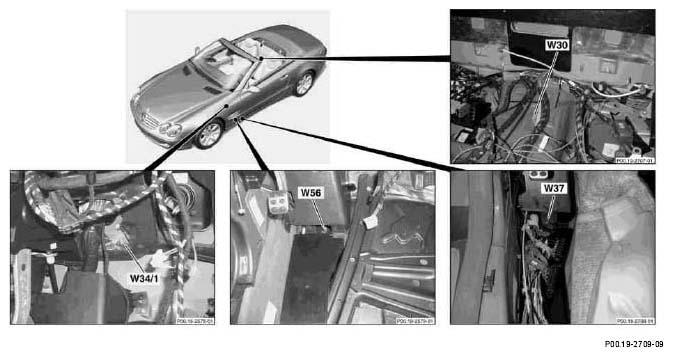

Arrangement and assignment of ground terminals, interior compartment (left) - GF00.19-U-2000-04KA
MODEL 230
| Ground point | Designation | Component | Designation | Connector Pin | |
|---|---|---|---|---|---|
| W30 | Ground (frame) | ||||
| → A28/3 | E-net compensator | 1.2 | |||
| up to 05/04 | |||||
| → A2/13 | Sound amplifier | 1.9 | |||
| → A34/4 | Telephone interface | 3 | |||
| → A35/8 | TELE AID control module | J10.13 J10.14 |
|||
| → A35/11 | Voice control system control module | 1.3 | |||
| → A40/3 | COMAND operating, display and control module | A.8 | |||
| → N123/1 | Universal Portable CTEL Interface (UPCI [UHI]) control module | 1.3 | |||
| as of 06/04 | |||||
| → A2/6 | CD player with changer | 1.2 | |||
| → A2/13 | Sound amplifier | 1.2 | |||
| → A35/11 | Voice control system control module | 1.19 | |||
| → A40/3 | COMAND operating, display and control module | 1 | |||
| → N123/1 | Universal Portable CTEL Interface (UPCI [UHI]) control module | 1.3 1.4 |
|||
| → N123/4 | Emergency call system control unit | 1.2 | |||
| → N41/1 | Navigation processor | 1.1 | |||
| → N87/5 | SDAR control unit | 1.1 | |||
| → N93/1 | Audio gateway control module | 1.3 | |||
| → N96 | Frequency switchover control module | 1.1 | |||
| TELE AID | → S93/3 | SOS pushbutton switch | 3 | ||
| E-call | → S93/6 | MB-Info and breakdown assistance button group | 6 | ||
| W34/1 | Ground (electronics - left footwell) | → A1 | Instrument cluster | 1 | |
| M113 | → N3/10 | ME-SFI [ME] control module | 5.5 5.6 5.7 5.8 |
||
| M275 | → N3/10 | ME-SFI [ME] control module | 5.5 5.6 5.7 |
||
| → N47-5 | ESP, SPS and BAS [ESP, PML and BAS] control module | 1.23 | |||
| → N55 | System diagnosis control unit | 2 | |||
| M113.963 | → S16/6 | Kickdown switch | 1 | ||
| → X11/4 | Data link connector | 4 5 |
|||
| W37 | Ground (left footwell) | → A1 | Instrument cluster | 2 | |
| → A2/38 | Left door KEYLESS-GO antenna | 3 | |||
| → E17/16 | Left footwell lamp | 1 | |||
| → K40/2 | Driver-side fuse and relay module | I1.2 | |||
| → N22 | AAC pushbutton control module | 1.16 | |||
| → N32/1 | Left front seat adjustment control module with memory | 13.10 | |||
| → N69/1 | Left door control module | 6.4 | |||
| → N69/5 | KEYLESS GO control unit | 4.10 | |||
| → N73 | EIS [EZS] control unit | B.5 | |||
| → N80 | Steering column module | A.6 | |||
| SL 55 AMG | → N80 | Steering column module | A.13 | ||
| → R3x1 | Cigar lighter connector | 1 | |||
| → S12 | Parking brake indicator switch | 1 | |||
| → S17/3 | Left door contact switch | 1 | |||
| → S47x1 | Capacitive sensor and push contact connector | 1 5 |
|||
| as of 09/03 | → Y3/8 | Electric control unit (VGS) | 5 | ||
| W56 | Ground screening left, CAN bus | → X30/18 | Left voltage distributor connector (CAN C) | 1.3 | |
| up to 05/02 | → Z73/8 | Driver CAN B screening connector sleeve | |||
| up to 05/02 | → Z73/9 | Front passenger CAN B screening connector sleeve | |||
