Retrofit digital TV tuner control unit - AZ82.60-P-0007-01RA

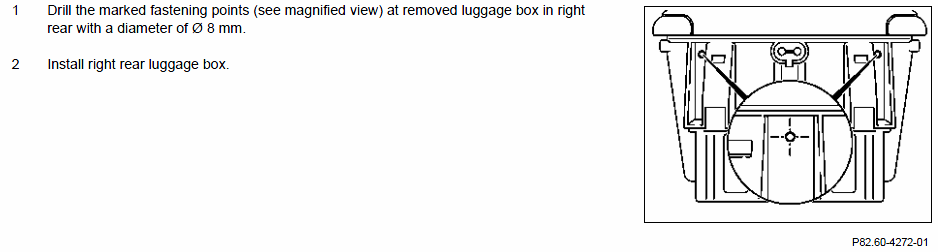

Fig 1: Retrofitting Digital TV Tuner Control Unit - Steps 1, 2
G00543179Courtesy of MERCEDES-BENZ USA

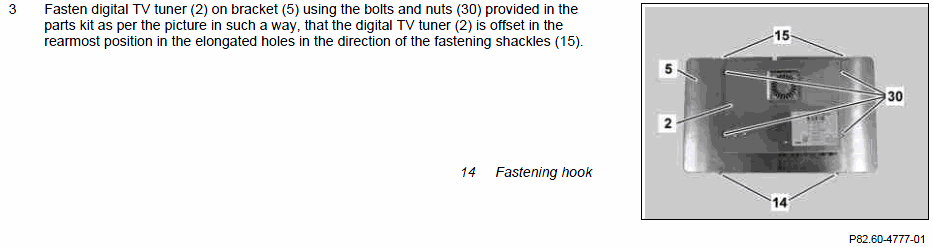

Fig 2: Retrofitting Digital TV Tuner Control Unit - Step 3
G00543180Courtesy of MERCEDES-BENZ USA

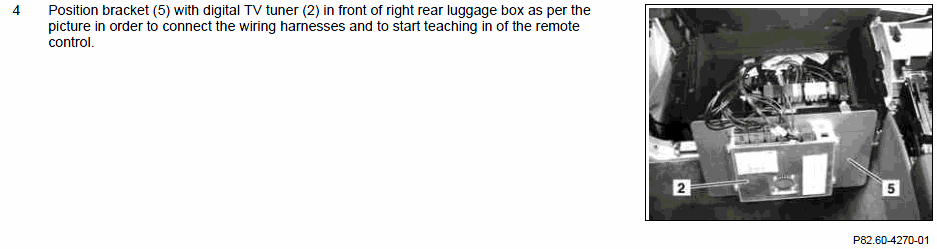

Fig 3: Retrofitting Digital TV Tuner Control Unit - Step 4
G00543181Courtesy of MERCEDES-BENZ USA

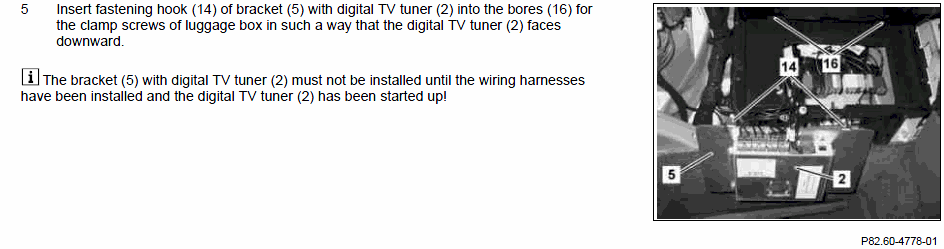

Fig 4: Retrofitting Digital TV Tuner Control Unit - Step 5
G00543182Courtesy of MERCEDES-BENZ USA

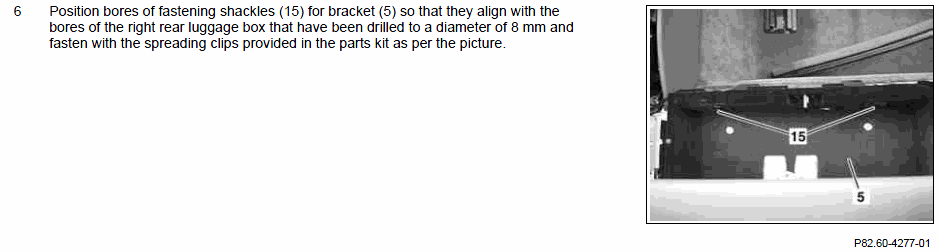

Fig 5: Retrofitting Digital TV Tuner Control Unit - Step 6
G00543183Courtesy of MERCEDES-BENZ USA
