Performing start-up and function test - AZ82.61-P-0001-04MM

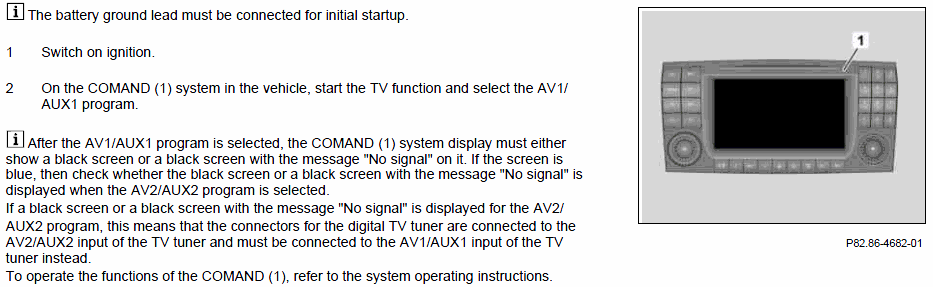

Fig 1: Performing Start-Up And Function Test - Steps 1, 2

Courtesy of MERCEDES-BENZ USA

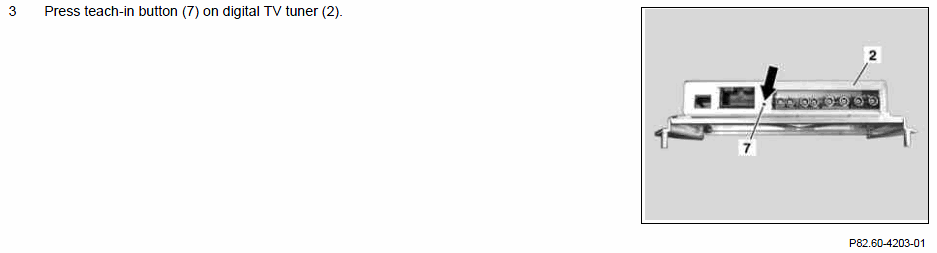

Fig 2: Performing Start-Up And Function Test - Step 3

Courtesy of MERCEDES-BENZ USA

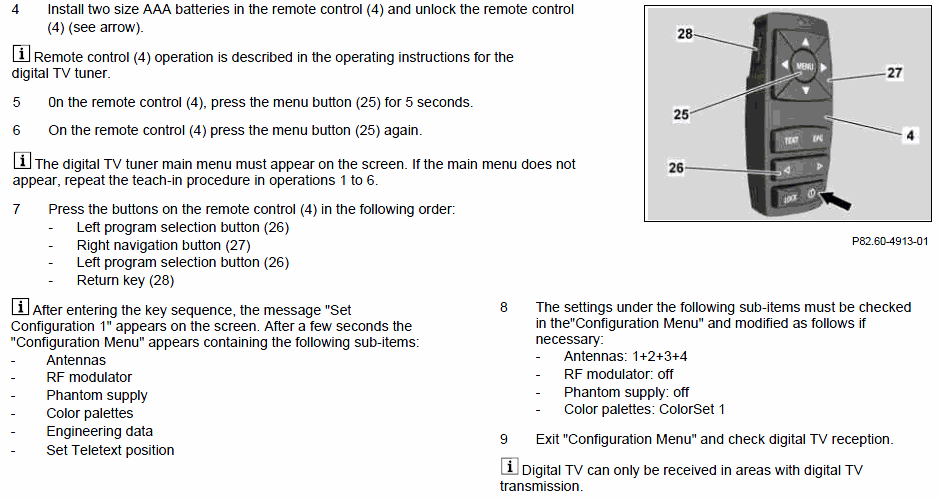

Fig 3: Performing Start-Up And Function Test - Steps 4, 5, 6, 7, 8, 9

Courtesy of MERCEDES-BENZ USA
