Telephone antenna, location/task - GF82.62-P-4105RM

MODEL 230.4

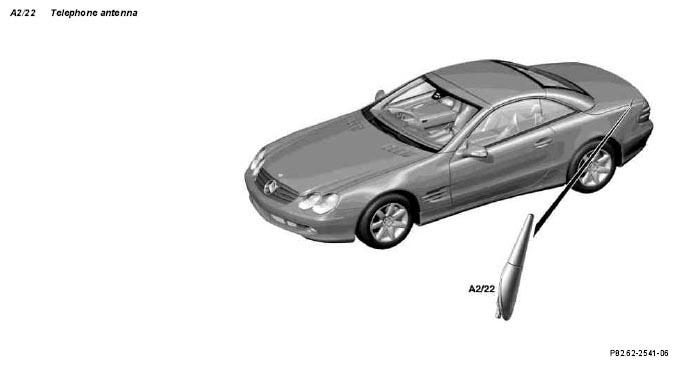

Fig 1: Identifying Telephone Antenna Location - Model 230.4
G05075632
  Telephone antenna, location The telephone antenna (A2/22) is mounted on the left rear fender.
  Telephone antenna, purpose The telephone antenna (A2/22) transmits and receives telephone signals (data and voice information).
