Rear window antennas, location - GF82.62-P-3106-01R

Rear window antenna

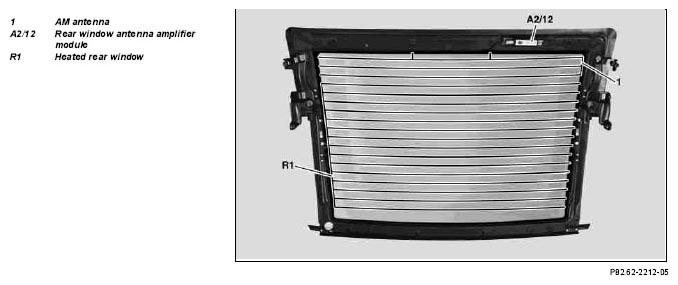

Fig 1: Identifying Rear Window Antenna Amplifier Module And Heated Rear Window
G05075623

IMPORTANT The wires for the heated rear window (R1) are not used as antennas.
