Body Electrical -- Basic Knowledge - 230 Chassis - 1 Of 2
>>
Basic Knowledge
>>
Headlamp cleaning system (HCS), function - GF82.15-P-0002R
>>
Headlamp cleaning system (HCS), interlinkage of components - GF82.15-P-0002-04R
Headlamp cleaning system (HCS), interlinkage of components - GF82.15-P-0002-04R
Networking of components

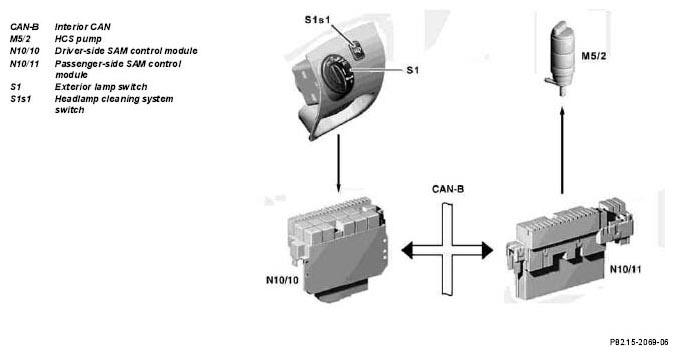

Fig 1: Headlamp Cleaning System - Communication Diagram
