Exterior lights, interlinkage of components - GF82.10-P-0003-01R

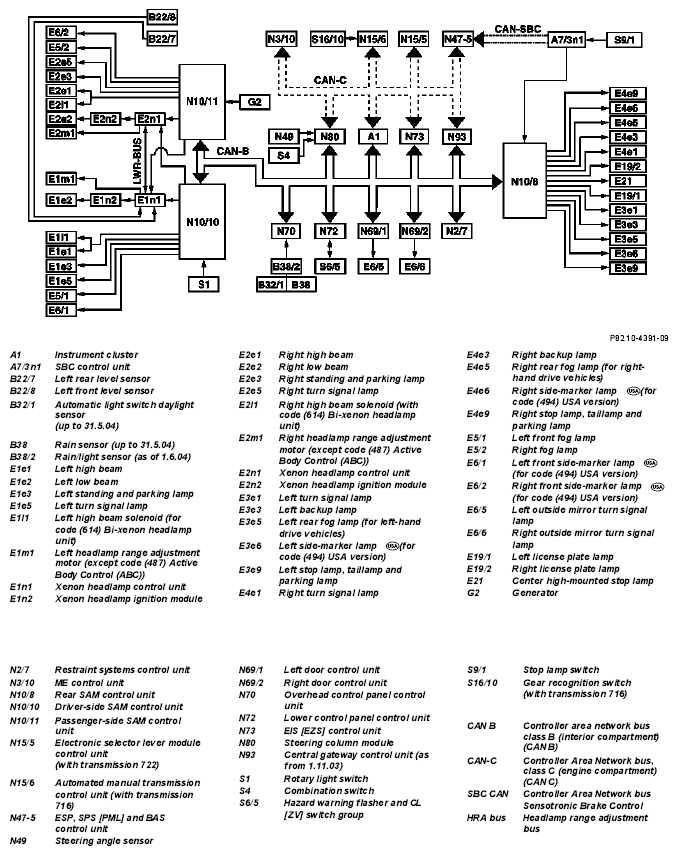

Fig 1: Exterior Lights - Communication Diagram
