Remove/install wheel carrier - AR35.20-P-0115I
MODEL 215
MODEL 220 (except 220.8) except CODE (Z04) Light armoring except CODE (Z07) Top protection except CODE (979) Special protection version
Shown on model 220 with AIRMATIC
MODIFICATION NOTES
| 15.3.06 | Bolt, thrust arm to wheel carrier | Model 215.374/376 | *BA35.20-P-1004-05A |
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | ||
| Notes on self-locking nuts and bolts | |||
| While working on the rear axle care must be taken to ensure that the surface of all aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the parts will be affected | |||
| When tightening the wheel carrier the vehicle must be on its wheels, otherwise the rubber mounts are permanently under load and are damaged as a result | |||

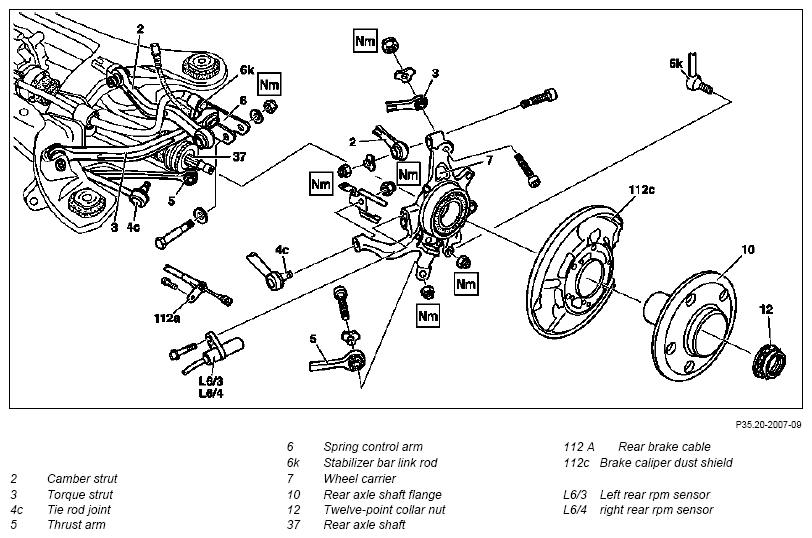

| 1 | Remove twelve-point collar nut (12) from rear axle shaft (37) | AR35.30-P-0115-01A | |
| *BA35.30-P-1001-01A | |||
| 2 | Raise vehicle with vehicle lift | ||
| 3 | Remove rear wheel | ||
| Remove/install wheels | |||
| 4 | Detach brake caliper from rear axle | ||
| 5 | Detach rear brake cable (112a) from automatic cable slack adjuster of parking brake | See: ↓ | |
| Remove rear brake cable. | AR42.20-P-0525I | ||
| 6 | Remove brake disk | AR42.10-P-0220I | |
| 7 | Remove parking brake shoes | Model 215 except 215.379, 220 except 220.179 | AR42.20-P-0530I |
| Model 220.179, 215.379 | AR42.20-P-0530IM | ||
| 8 | Detach left rear rpm sensor (L6/3) or right rear rpm sensor (L6/4) from wheel carrier (7) | AR42.40-P-0820I | |
| 9 | Check whether rear axle shaft (37) is firmly attached to rear axle shaft flange (10) | If rear axle shaft is jammed: ↓ |
|
| Press rear axle shaft out of the rear axle shaft flange (10). | AR35.30-P-0115-03B | ||
| 10 | Detach spring control arm (6) from wheel carrier (7) | ||
| 11.1 | Detach stabilizer bar link rod (6k) from wheel carrier (7) | Vehicles with AIRmatic (semi-active air suspension), code 489 | |
| 12 | Press track rod joint (4c) out of wheel carrier (7) | AR35.20-P-0109-01I | |
| 13 | Detach thrust arm (5) from wheel carrier (7) | ||
| 14 | Detach torque strut (3) from wheel carrier (7) | ||
| 15 | Detach camber strut (2) from wheel carrier (7) | ||
| 16 | Remove wheel carrier (7) from rear axle shaft (37) | ||
| 17 | Fasten rear axle shaft (37) to vehicle with wire | ||
| 18.1 | Remove rear axle shaft flange (10) | Only if the brake cover plate (112c) has to be removed, see: ↓ |
|
| Remove/install rear axle shaft flange and angular ball bearing. | |||
| 19 | Install in the reverse order | ||
| 20.1 | Perform wheel alignment check | After installing new parts. |
REAR AXLE SHAFT
| Number | Designation | Model 215 | Model 220 | ||
|---|---|---|---|---|---|
| BA35.30-P-1001-01A | Collar nut, rear axle shaft to rear axle shaft flange | self-locking | Nm | 350 | 350 |
| not self-locking | Nm | 320 | 320 | ||
REAR AXLE STABILIZER BAR
| Number | Designation | Model 220 | |
|---|---|---|---|
| BA32.20-P-1001-04G | Nut, link rod to wheel carrier | Nm | 40 |
SPRING CONTROL ARM
| Number | Designation | Model 215 | Model 220 | ||
|---|---|---|---|---|---|
| BA35.20-P-1002-01A | Self-locking nut, spring control arm to wheel carrier. | Stage 1 | Nm | 120 | 120 |
| Stage 2 | ∠° | - | - | ||
CAMBER STRUT
| Number | Designation | Model 220.025/026/028/063/065/067/070/073/075/083/084/087/125/126/128/163/165/167/170/173/175/178/183/184/187 | Model 220.074/174/176 | Model 220.179 | ||
|---|---|---|---|---|---|---|
| BA35.20-P-1003-02A | Self-locking nut, camber strut to wheel carrier. | Stage 1 | Nm | 45 | - | - |
| Stage 2 | ∠° | 45 | - | - | ||
| BA35.20-P-1004-02A | Bolt, camber strut to wheel carrier | Stage 1 | Nm | - | 90 | 230 |
| Stage 2 | ∠° | - | 45 | - | ||
CAMBER STRUT
| Number | Designation | Model 215.373/375/378 | Model 215.374/376 | Model 215.379 | ||
|---|---|---|---|---|---|---|
| BA35.20-P-1003-02A | Self-locking nut, camber strut to wheel carrier. | Stage 1 | Nm | 45 | - | - |
| Stage 2 | ∠° | 45 | - | - | ||
| BA35.20-P-1004-02A | Bolt, camber strut to wheel carrier | Stage 1 | Nm | - | 90 | 230 |
| Stage 2 | ∠° | - | 45 | - | ||
TIE ROD
| Number | Designation | Model 215 | Model 220 | |||
|---|---|---|---|---|---|---|
| BA35.20-P-1002-04A | Self-locking nut, tie rod at wheel carrier | yellow M10X1 | Nm | - | - | |
| Silver or blue M10X1 | Nm | - | - | |||
| silver or blue M10X1.5 | Stage 1 | Nm | 30 | 30 | ||
| Stage 2 | ∠° | - | - | |||
TORQUE STRUT
| Number | Designation | Model 220.025/026/028/063/065/067/070/073/075/083/084/087/125/126/128/163/165/167/170/173/175/178/183/184/187 | Model 220.074/174/176 | Model 220.179 | |
|---|---|---|---|---|---|
| BA35.20-P-1003-05A | Self-locking nut, thrust arm to wheel carrier | Nm | 45 | - | - |
| ∠° | 45 | - | - | ||
| BA35.20-P-1004-05A | Bolt, thrust arm to wheel carrier | Nm | - | 90 | 180 |
| ∠° | - | 45 | - | ||
TORQUE STRUT
| Number | Designation | Model 215.373/375/378 | Model 215.374/376 | Model 215.379 | ||
|---|---|---|---|---|---|---|
| BA35.20-P-1003-05A | Self-locking nut, thrust arm to wheel carrier | Stage 1 | Nm | 45 | - | - |
| Stage 2 | ∠° | 45 | - | - | ||
| BA35.20-P-1004-05A | Bolt, thrust arm to wheel carrier | Stage 1 | Nm | - | 90 | 180 |
| Stage 2 | ∠° | - | 60 | - | ||
TORQUE STRUT
| Number | Designation | Model 215 | Model 220 | |||
|---|---|---|---|---|---|---|
| BA35.20-P-1001-03B | Self-locking nut, tension arm to rear axle carrier | M12 | Nm | 70 | 70 | |
| M14 | ∠° | 120 | 120 | |||
| BA35.20-P-1002-03B | Self-locking nut, torque strut to wheel carrier | M12 | Nm | 70 | 70 | |
| M14 | Stage 1 | Nm | 90 | 90 | ||
| Stage 2 | ∠° | 60 | 60 | |||
| M16 | Nm | 230 | 230 | |||
