Remove/install spring control arm and replacement of rubber mount - AR35.20-P-0114I

MODEL 220.025/026/028/083/084/087/125/126/128/183/184/187

MODEL 220.063/065/067/070/075/163/165/167/170/175 except CODE (487) Active Body Control (ABC)

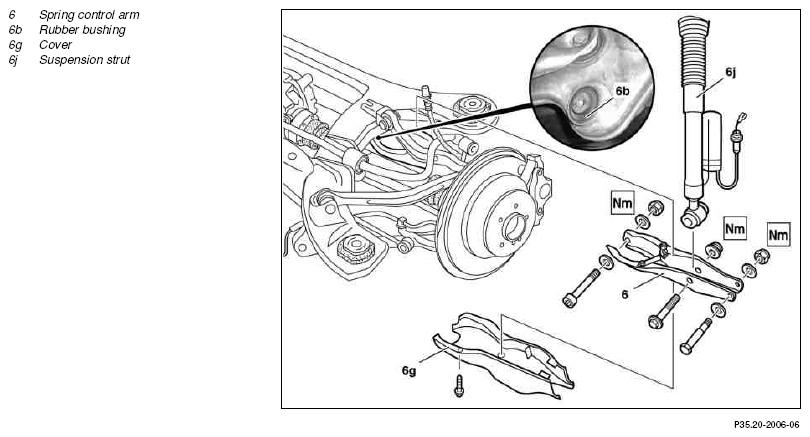

Fig 1: Identifying Spring Control Arm And Rubber Mount Remove/Install Components
G10127374Courtesy of MERCEDES-BENZ USA
MODIFICATION NOTES

20.7.00 Figure divided Value in BA35.20-P-1001-01A revised for model 215
20.7.00 Figure divided Value changed to BA35.20-P-1001-01A for model 220
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.
NOTES Notes on self-locking nuts and bolts
NOTES While working on the rear axle care must be taken to ensure that the surface of all aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the parts will be affected
1 Raise vehicle with vehicle lift
2 Remove exhaust system at flange connection See: ↓
Remove complete exhaust system:

Engine 112, 113
Engine 613 AR49.10-P-7000M
Engine 628 AR49.10-P-7000MB
Engine 648 AR49.10-P-7000MZ
3 Detach cover (6g) from spring control arm (6) IMPORTANT To do this, pull pin out of expansion rivet and remove expansion rivet from cover and spring control arm.
4 Remove spring control arm (6) from rear axle carrier SPECIAL TOOL Screwdriver bit
INSTALLATION IMPORTANT The rear-axle shaft must be horizontal when tightening the nut

INSTALLATION IMPORTANT Tighten bolts or nuts as per tightening angle. AR35.10-P-0010-08IA
TORQUE SPECIFICATION
5 Remove spring control arm (6) from wheel carrier TORQUE SPECIFICATION The rear-axle shaft must be horizontal when tightening the nut
TORQUE SPECIFICATION
6 Remove suspension strut (6j) from spring control arm (6) TORQUE SPECIFICATION
INSPECT Checking
7 Check rubber bushing (6b) of spring control arm (6) in rear axle carrier If necessary after checking: ↓
Remove and instal spring control arm rubber mount. AR35.20-P-0114-01I
SPECIAL TOOL Extraction and insertion tool
SPECIAL TOOL Press
8 Install in the reverse order
SUSPENSION STRUTS

Number Designation Model 220.025/026/028/063/065/067/070/073/074/075/125/126/128/163/165/167/170/173/174/175/176/178/179 Models 220.083/084/087/183/184/187
BA32.25-P-1005-04B Nut, rear strut to spring control arm Nm 110 110
SPRING CONTROL ARM

Number Designation Model 220
BA35.20-P-1001-01A Self-locking nut, track control arm to rear subframe Stage 1 Nm 50
Stage 2 ∠° 90
BA35.20-P-1002-01A Self-locking nut, spring control arm to wheel carrier. Stage 1 Nm 120
Stage 2 ∠° -
Fig 2: Identifying Screwdriver Bit (119 589 00 10 00)
G07710166Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Removal And Installation Tool (220 589 01 43 00)
G10109893Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Press (202 589 04 43 10)
G07274460Courtesy of MERCEDES-BENZ USA
