Rear rubber bushing, rear axle mount - Removal and installation - AR35.10-P-0042SXS

MODEL 221 with CODE (Z07) Top protection

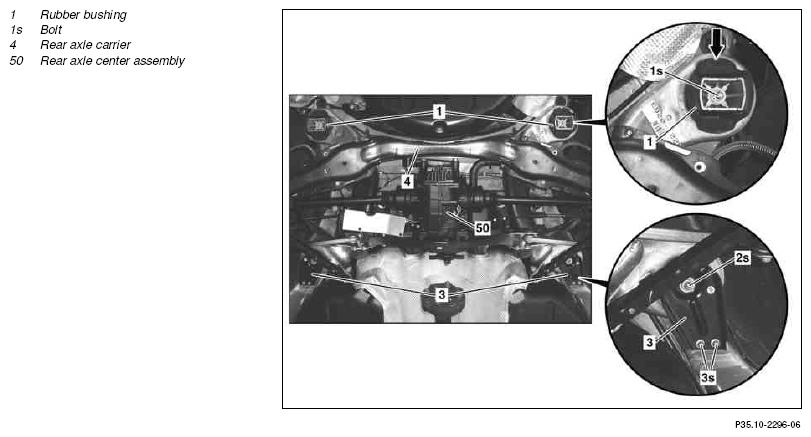

Fig 1: Identifying Rear Rubber Bushing And Rear Axle Mount Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Removing

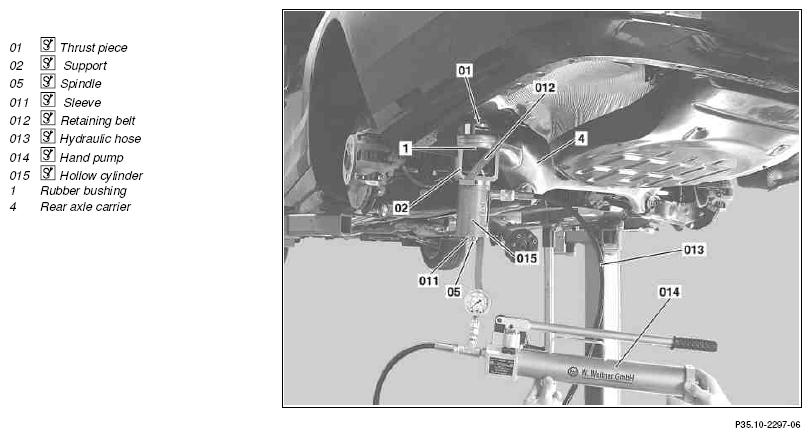

Fig 2: Removing Rear Rubber Bushing And Rear Axle Mount

Courtesy of MERCEDES-BENZ USA

Install

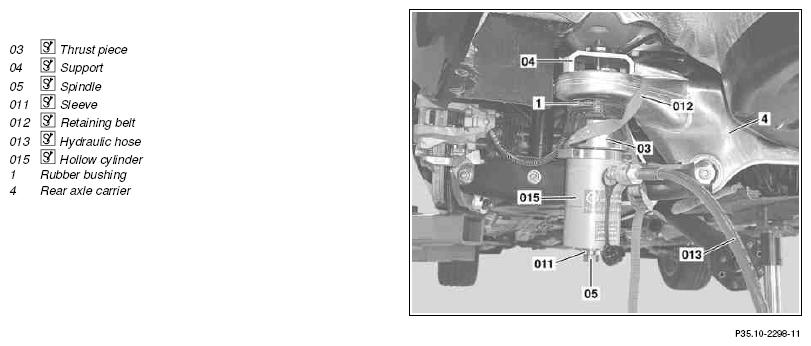

Fig 3: Installing Rear Rubber Bushing And Rear Axle Mount

Courtesy of MERCEDES-BENZ USA

	Removing
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	While working on the rear axle care must be taken to ensure that the surface of all aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the parts will be affected
	Always replace rear rubber mounts (1) in pairs
	For removal, the following tools from the extraction and insertion tool are required: thrust piece (01) 221 589 00 43 01, spindle (05) 221 589 00 43 05 and sleeve (011) 221 589 00 43 11		Figure
	For removal, the following tool from the extraction tools is required: support (02) 140 589 13 33 02		Fig 9
1	Secure vehicle on lifting platform		AR00.60-P-0100SX
2	Remove rear wheels.
	Remove/install wheels		AP40.10-P-4050SX
3	Remove exhaust system as of flange connection		AR49.10-P-7100SX
4	Detach propeller shaft from rear axle center assembly (50)		AR41.10-P-0050-03SX
5	Remove covers of spring control arms
6	Tension rear springs		AR32.20-P-0200-06MB
7	Prop up rear axle carrier (4) on rear axle center assembly (50) using transmission jack and transmission platform
8	Mark the installation position of the respective rubber mount (1) at cutout (arrow)
9	Remove bolts (1s) of rubber mounts (1)
10	Lower the rear axle carrier (4)
11	Attach thrust piece (01), support (02), spindle (05) and sleeve (011) with hollow cylinder (015) and retaining belt (012) to rubber mount (1) of rear axle carrier (4)	The retaining belt must be routed behind the thrust piece in order to prevent the hollow cylinder falling down when the rubber mount is pressed out.
			Figure
			Figure
			Figure
			Fig 9
12	Connect hand pump (014) using hydraulic hose (013) on hollow cylinder (015)		Figure
			Figure
			Figure
13	Press rubber mount (1) out of rear axle carrier (4)	When pressing out the rubber mount the hollow cylinder (015) is supported in the retaining belt (012). Keep your distance!
	Install
	For installation, the following tools from the extraction and insertion tools are required: support (04) 221 589 00 43 04, spindle (05) 221 589 00 43 05 and sleeve (011) 221 589 00 43 11		Figure
	For installation, the following tool from the insertion tools is required: Thrust piece (03) 220 589 04 43 00		Fig 10
14	Coat new rubber mounts (1) with rubber assembly fluid		*BR00.45-Z-1010-06A
15	Attach thrust piece (03), support (04), spindle (05) and sleeve (011) with hollow cylinder (015) and retaining belt (012) to the rubber mount (1) of the rear axle carrier (4)		Figure
			Figure
			Figure
			Fig 10
16	Press rubber mount (1) into rear axle carrier (4)
17	Raise rear axle carrier (4).
18	Screw in bolts (1s) of rubber mounts (1)		*BA35.10-P-1002-01M
19	Release tension of rear springs
20	Install covers of spring control arms
21	Mount propeller shaft onto rear axle center assembly (50)		AR41.10-P-0050-04SX
22	Install exhaust system as of flange connection		AR49.10-P-7100SX
23	Fit rear wheels
	Remove/install wheels		AP40.10-P-4050SX
24	Remove lifting platform safety device		AR00.60-P-0100SX

REAR AXLE CARRIER

Number	Designation			Model 221 except 221.176/179 with rear axle differential 240V	Model 221.176/179 with rear axle differential 240V
BA35.10-P-1002-01M	Self-locking bolt, rear axle carrier rear rubber mount to frame floor	Stage 1	Nm	80	80
		Stage 2	∠°	90	90

Fig 4: Identifying Extraction And Insertion Tool (221 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Hand Pump (652 589 00 33 21)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Hollow Cylinder (652 589 00 33 22)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Hydraulic Hose (Complete) (652 589 00 33 23)

Courtesy of MERCEDES-BENZ USA

Fig 8: Identifying Retaining Belt (001 589 01 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 9: Identifying Extraction Tool (140 589 13 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 10: Identifying Insertion Tool (220 589 04 43 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 l	A 000 989 03 67
