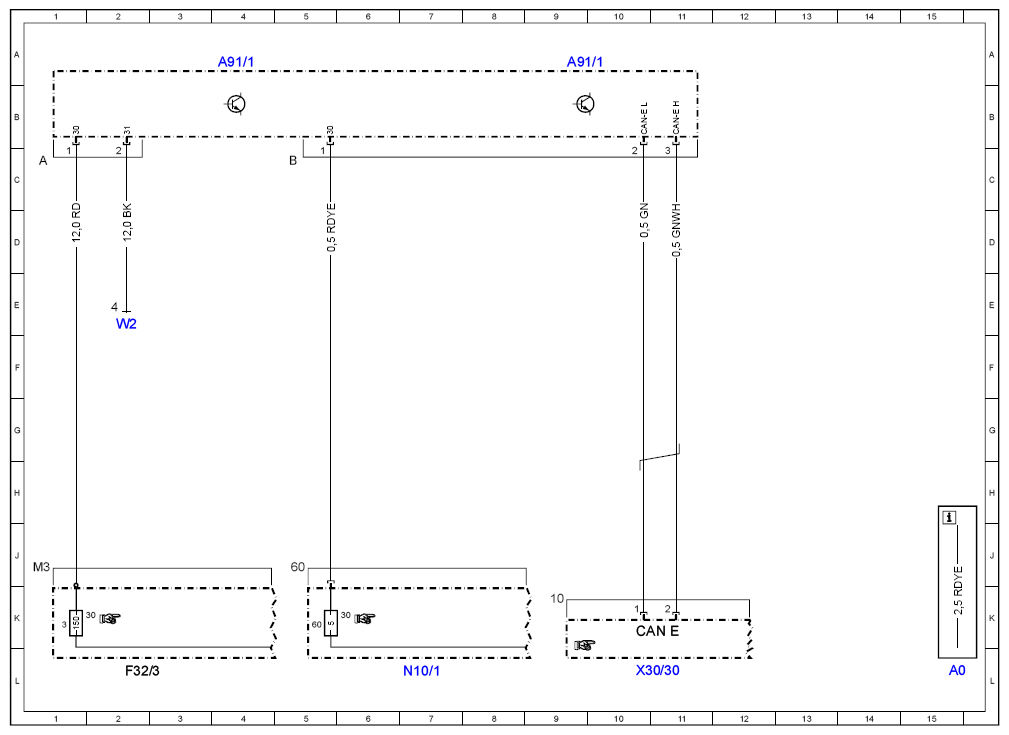

Wiring diagram for electrohydraulic power steering - PE46.25-P-2000-97SAA
MODEL 221 with CODE (275) Memory package (driver seat, steering column, mirrors) as of Model Year 2009
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A91/1 | Electrohydraulic power steering | 4A |
| A91/1 | Electrohydraulic power steering | 9A |
| CAN E | Chassis CAN | 10K |
| F32/3 | Engine compartment prefuse box | 2L |
| F32/3f3 | Fuse 3 | 1K |
| N10/1 | Front SAM control unit with fuse and relay module | 7L |
| N10/1f60 | Fuse 60 | 5K |
| W2 | Ground (right front, at lamp unit) | 2E |
| X30/30 | Chassis CAN/FFS [RBA] voltage distributor connector | 10L |
