| A0 |
Color code key |
64L |
| F1/7 |
Left instrument panel fuse box |
2L |
| F1/7f92 |
Fuse 92 |
1K |

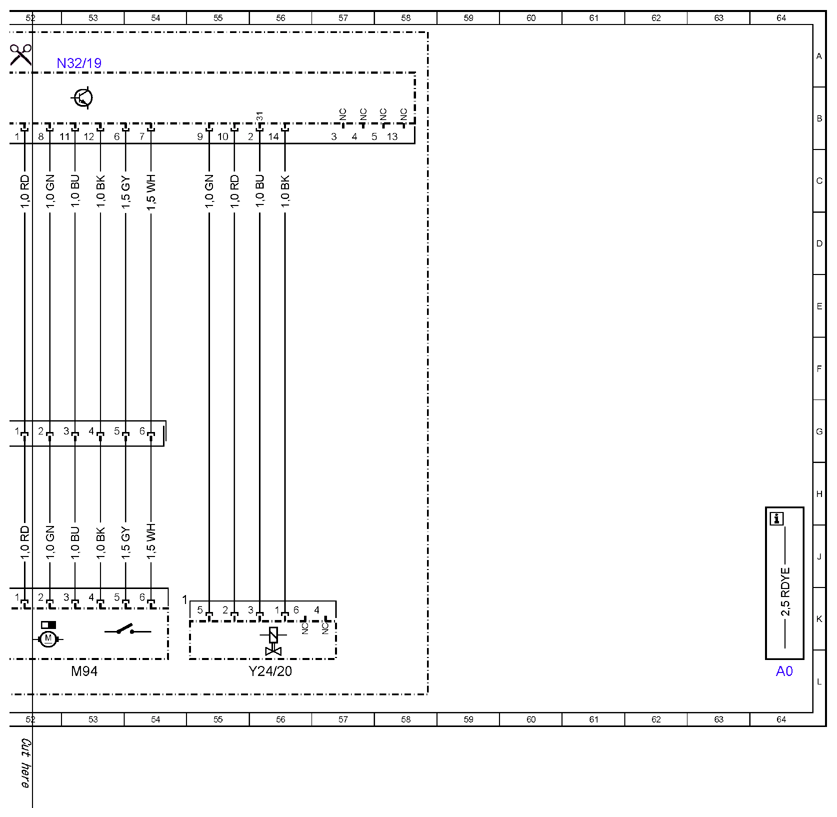

| M94 |
Left front seat massage function actuator motor |
53L |
| M94x1 |
Left front seat massage function actuator motor electrical connector |
52H |
| N32/1 |
Left front seat control unit |
4L |
| N32/1 |
Left front seat control unit |
49L |

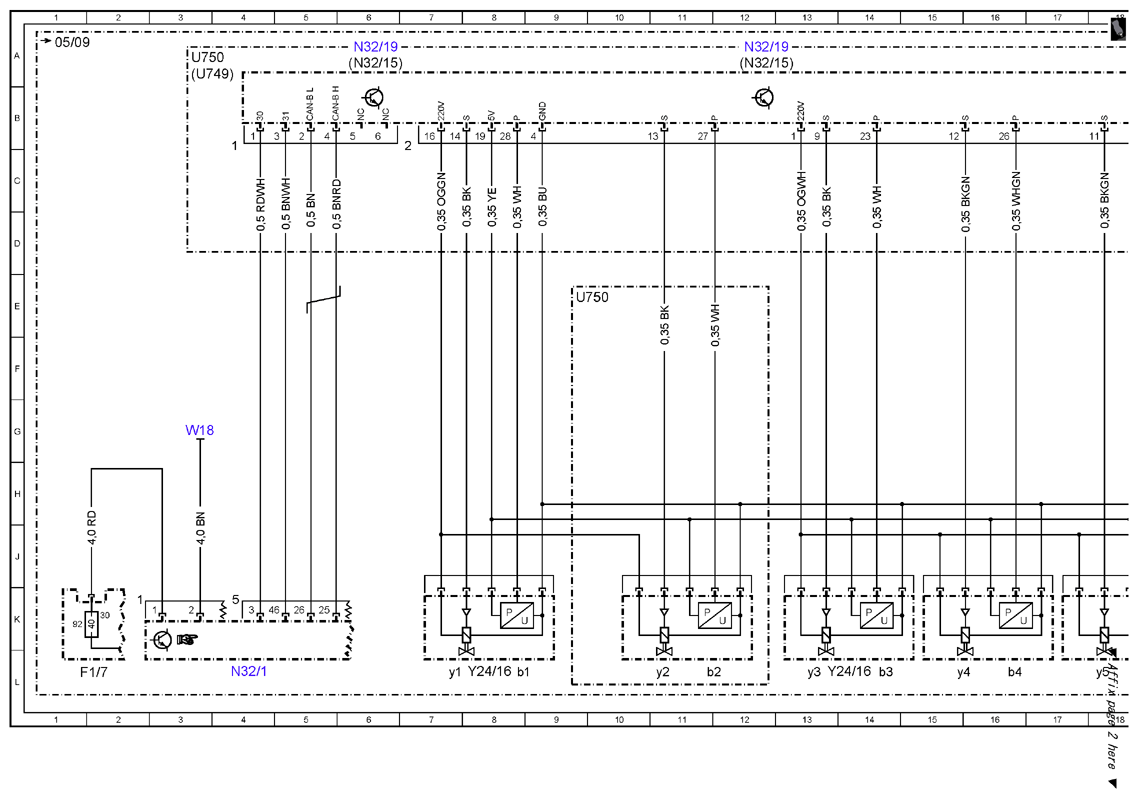

| N32/15 |
Left front multicontour backrest control unit |
12A |
| N32/15 |
Left front multicontour backrest control unit |
6A |
| N32/15 |
Left front multicontour backrest control unit |
20A |
| N32/15 |
Left front multicontour backrest control unit |
28A |
| N32/15 |
Left front multicontour backrest control unit |
36A |
| N32/15 |
Left front multicontour backrest control unit |
44A |

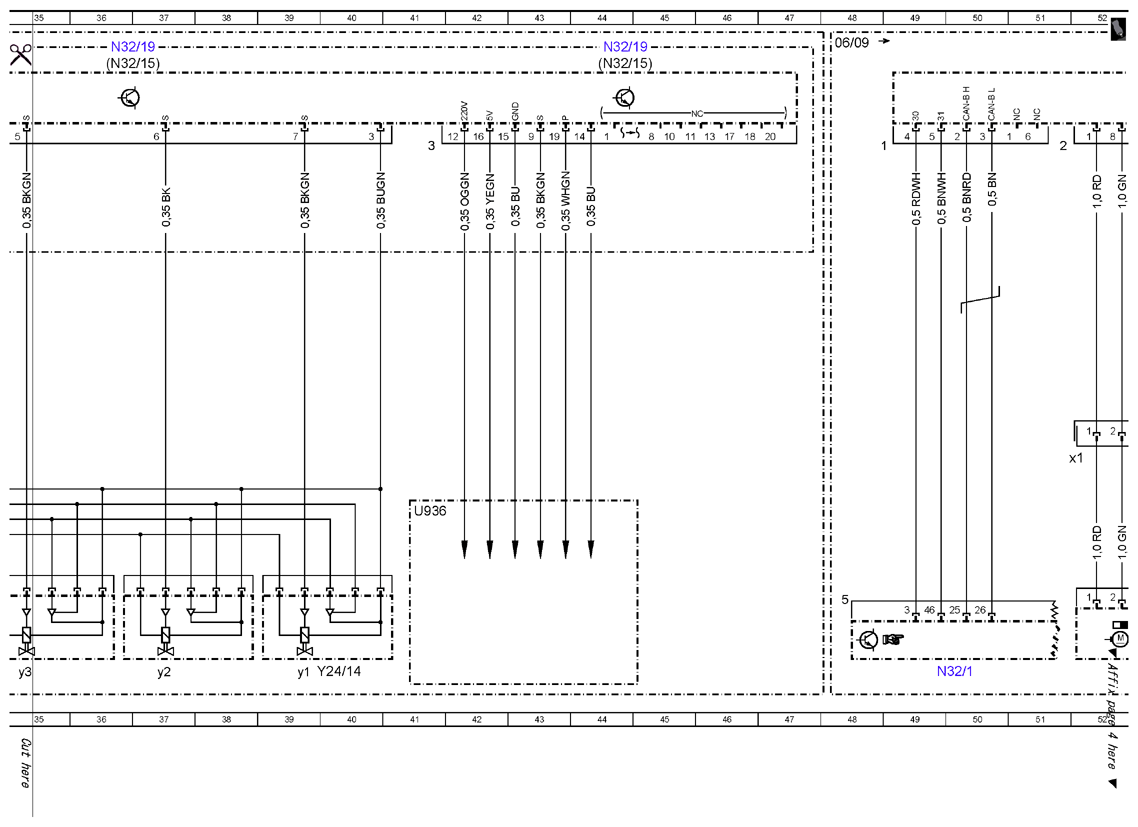

| N32/19 |
Left front dynamic seat control unit |
12A |
| N32/19 |
Left front dynamic seat control unit |
6A |
| N32/19 |
Left front dynamic seat control unit |
20A |
| N32/19 |
Left front dynamic seat control unit |
28A |
| N32/19 |
Left front dynamic seat control unit |
53A |
| N32/19 |
Left front dynamic seat control unit |
36A |
| N32/19 |
Left front dynamic seat control unit |
44A |
| U749 |
Valid for multicontour seat (MCS [MKS]) |
3A |
| U750 |
Valid for dynamic seat (DS [FDS]) |
9E |
| U750 |
Valid for dynamic seat (DS [FDS]) |
3A |
| U936 |
Driver dynamic seat massage function |
41H |
| W18 |
Ground (left front seat crossmember) |
3G |

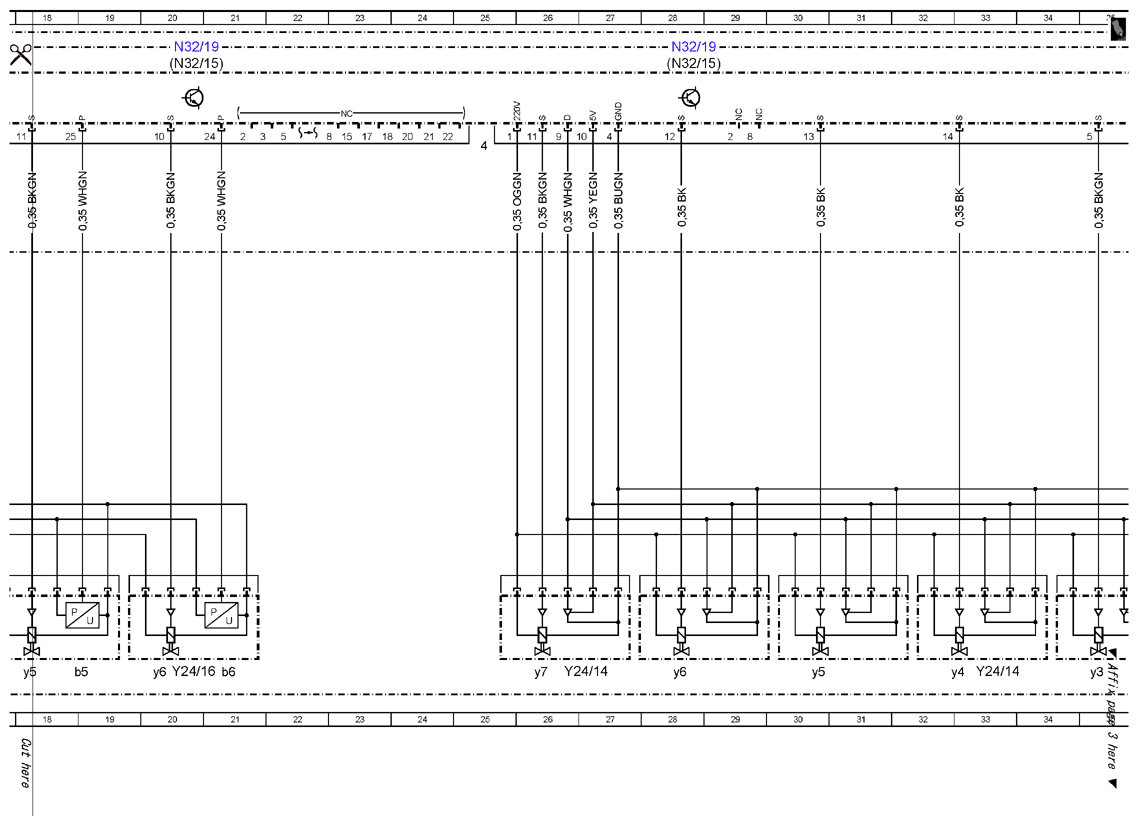

| Y24/14 |
Left front seat massage cushion valve group |
26L |
| Y24/14 |
Left front seat massage cushion valve group |
33L |
| Y24/14 |
Left front seat massage cushion valve group |
40L |
| Y24/14y1 |
Lower massage row 1 piezo valve |
39L |
| Y24/14y2 |
Lower massage row 2 piezo valve |
37L |
| Y24/14y3 |
Lower massage row 3 piezo valve |
35L |
| Y24/14y4 |
Lower massage row 4 piezo valve |
33L |
| Y24/14y5 |
Lower massage row 5 piezo valve |
30L |
| Y24/14y6 |
Lower massage row 6 piezo valve |
28L |
| Y24/14y7 |
Upper massage row piezo valve |
26L |
| Y24/16 |
Left front seat backrest cushion valve group |
8L |
| Y24/16 |
Left front seat backrest cushion valve group |
14L |
| Y24/16 |
Left front seat backrest cushion valve group |
20L |
| Y24/16b1 |
Left backrest lateral support cushion pressure sensor |
8L |
| Y24/16b2 |
Right backrest lateral support cushion pressure sensor |
11L |
| Y24/16b3 |
Shoulder cushion pressure sensor |
14L |
| Y24/16b4 |
Upper lumbar cushion pressure sensor |
16L |
| Y24/16b5 |
Central lumbar cushion pressure sensor |
18L |
| Y24/16b6 |
Lower lumbar cushion pressure sensor |
21L |
| Y24/16y1 |
Left backrest lateral support cushion piezo valve |
7L |
| Y24/16y2 |
Right backrest lateral support cushion piezo valve |
11L |
| Y24/16y3 |
Shoulder cushion piezo valve |
13L |
| Y24/16y4 |
Upper lumbar cushion piezo valve |
15L |
| Y24/16y5 |
Central lumbar cushion piezo valve |
18L |
| Y24/16y6 |
Lower lumbar cushion piezo valve |
20L |
| Y24/20 |
Dynamic driver seat massage function main valve |
56L |
