Remove/install rear seat cushion - AR91.12-P-1020M

MODEL 220.0/1 with CODE (223b) Electrically adjustable rear bench seat

MODELS 220.875/878 vis-a-vis seats

Shown on model 220.1

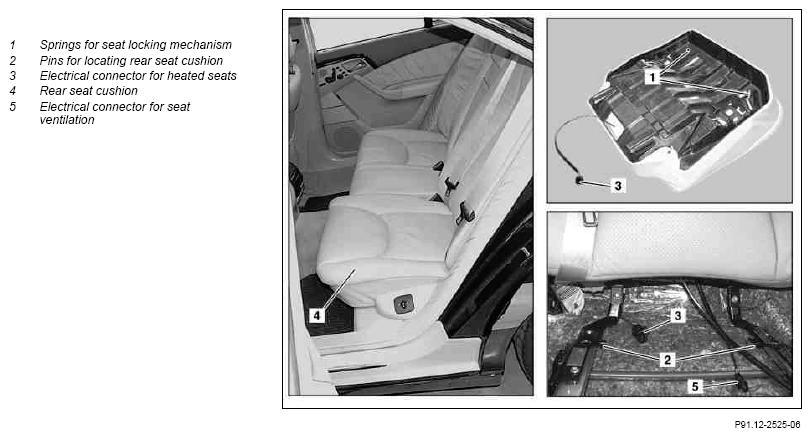

Fig 1: Identifying Rear Seat Cushion Remove/Install Components - Shown On Model 220.1

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Move rear seat cushion (4) fully forwards
2	Press springs (1) below the rear seat cushion (4) outwards and remove seat cushion	Ensure that the pins (2) on the seat adjuster move in the guides on the seat.
3.1	Disconnect electrical connector for heated seats (3)	With electric heated seats for left and right rear seat, code 872.
3.2	Disconnect electrical connector of seat ventilation (5) and heated seats	With seat ventilation for rear seats, code 402a.
4	Install in the reverse order
