Removing/installing engine charge air channel downstream of the charge air cooler - AR09.41-P-8624SXI

ENGINE 642 in MODEL 221

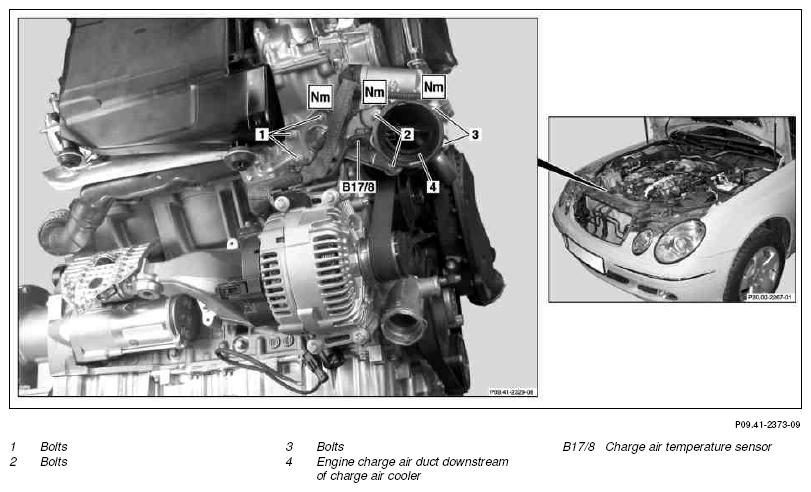

Fig 1: Identifying Engine Charge Air Channel Downstream Of Charge Air Cooler Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove engine cover		AR01.10-P-2405SXI
2	Remove engine charge air hose downstream of charge air cooler	In order to avoid leaks on the engine, check sealing rings and detent springs for damage, thoroughly clean connecting points, but do not grease, and ensure exact seating of the detent springs. See: ↓ Henn coupling
		Open connector and close	AR09.41-P-1311-01AL
3	Disconnect the electrical connector at the charge air temperature sensor (B17/8)
4	Remove right air filter housing		AR09.10-P-1150SXI
5	Remove bolts (1) of the bracket at the cylinder head	Bracket, throttle valve actuator to cylinder head	*BA09.41-P-1006-01J
6	Remove bolts (2) at engine charge air channel downstream of charge air cooler (4)	Engine charge air channel downstream of charge air cooler to throttle valve actuator	*BA09.41-P-1005-01J
7	Remove bolts (3) at engine charge air channel downstream of charge air cooler (4)	Engine charge air channel downstream of charge air cooler to throttle valve actuator	*BA09.41-P-1005-01J
8	Remove engine charge air channel downstream of charge air cooler (4)	Install new gasket
9	Install in the reverse order

CHARGE AIR PIPE/CHARGE AIR COOLING

Number	Designation		Engine 642
BA09.41-P-1005-01J	Engine charge air channel downstream of charge air cooler to throttle valve actuator	Nm	9
BA09.41-P-1006-01J	Bracket, throttle valve actuator to cylinder head	Nm	9
