Removing/installing engine charge air duct upstream of charge air cooler - AR09.41-P-8623SXI

ENGINE 642 in MODEL 221

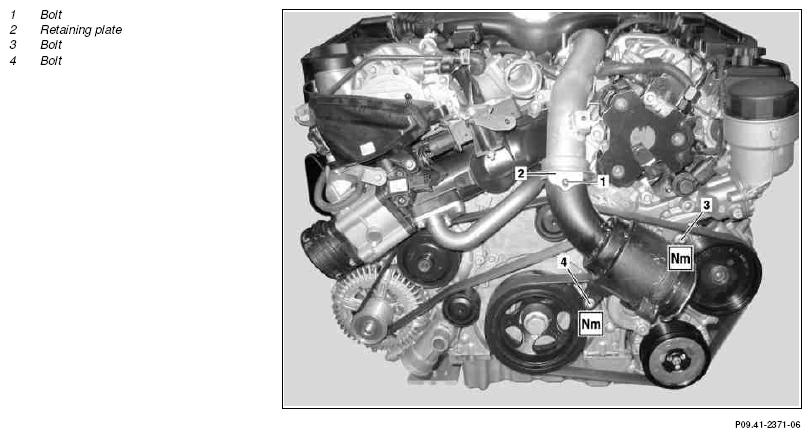

Fig 1: Identifying Engine Charge Air Duct Upstream Of Charge Air Cooler Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove engine cover		AR01.10-P-2405SXI
2	Disconnect engine charge air hose upstream of charge air cooler	The engine charge air hose is disconnected from the engine charge air channel upstream of the charge air cooler. In order to avoid leaks on the engine, check sealing rings and detent springs for damage, thoroughly clean connecting points, but do not grease, and ensure exact seating of the detent springs. See: ↓ Henn coupling
		Open connector and close	AR09.41-P-1311-01AL
3	Unscrew bolt (1)
4	Remove retaining plate (2) towards the front
5	Unscrew bolt (3).	Engine charge air channel upstream of charge air cooler to oil filter housing	*BA09.41-P-1003-01J
6	Unscrew bolt (4)	Engine charge air channel upstream of charge air cooler to bracket	*BA09.41-P-1002-01J
7	Unhook retaining clip for coolant hose
8	Pull engine charge air channel upstream of the charge air cooler downwards and remove
9	Install in the reverse order

CHARGE AIR PIPE/CHARGE AIR COOLING

Number	Designation		Engine 642
BA09.41-P-1002-01J	Engine charge air channel upstream of charge air cooler to bracket	Nm	6
BA09.41-P-1003-01J	Engine charge air channel upstream of charge air cooler to oil filter housing	Nm	12
