Remove, install tumble flap position sensor to intake manifold - AR09.20-P-1995SX
ENGINE 272, 273 in MODEL 221
ENGINE 273 in MODEL 216

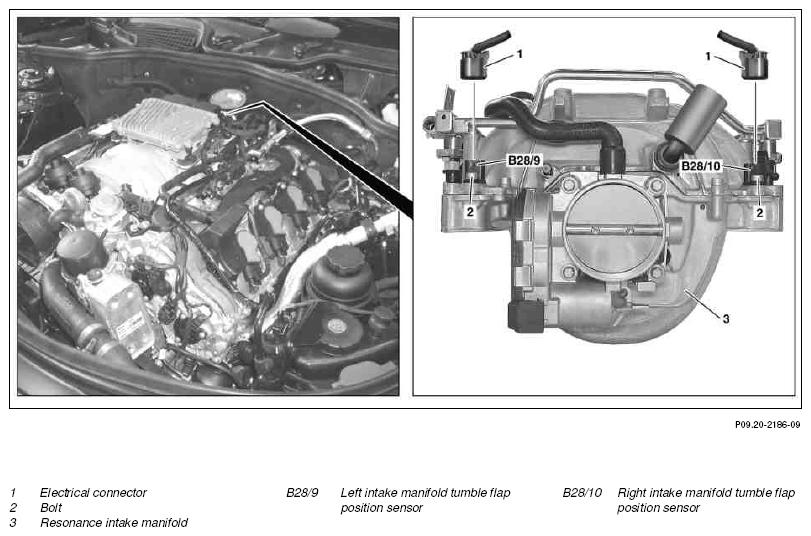

Fig 1: Identifying Tumble Flap Position Sensor To Intake Manifold Remove/Install Components (Shown On Model 221.071 With Active Body Control (ABC) Code 487)
Shown on Model 221.071 with Active Body Control (ABC) Code 487
| Remove/install | |||
| 1 | Turn key in ignition switch to position "0". | Press Keyless Go start/stop button repeatedly until ignition is switched off. Remove Keyless Go transmitter card or transmitter key from the vehicle and store beyond transmitter range (min. 2 m). |
|
| 2 | Remove air filter housing | AR09.10-P-1150SX | |
| 3 | Disconnect electrical connector (1) at left and right position sensor (B28/9 or B28/10) | ||
| 4 | Remove bolt (2) | *BA09.20-P-1002-01N | |
| 5 | Pull left and right position sensor (B28/9 or B28/10) out of resonance intake manifold (3) | ||
| 6 | Install in the reverse order | ||
| 7 | Read out fault memory with STAR DIAGNOSIS |
INTAKE MANIFOLD
| Number | Designation | Engine 272 | Engine 273 | |
|---|---|---|---|---|
| BA09.20-P-1002-01N | Bolt connecting tumble flap position sensor to resonance intake manifold | Nm | 6 | 6 |
