| A0 |
Color code key |
48A |
| A67 |

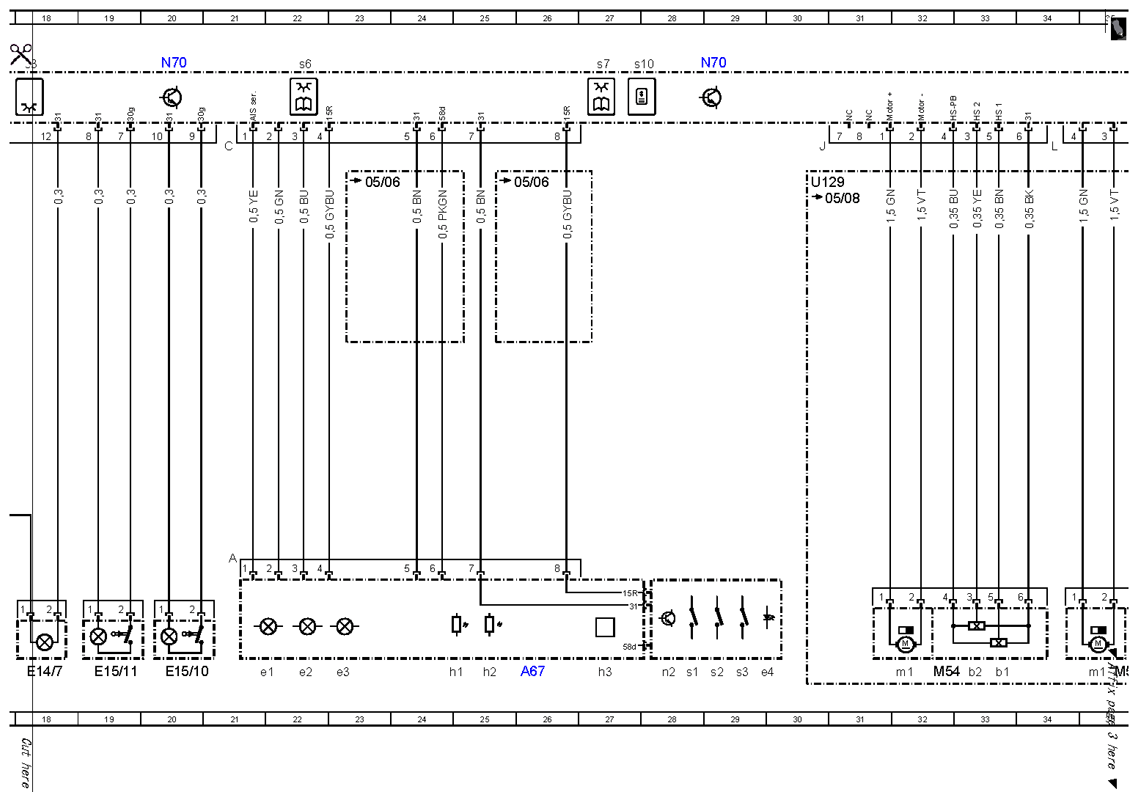

Inside rearview mirror unit |
26L |
| A67e1 |
Left reading lamp |
21L |
| A67e2 |
Right reading lamp |
22L |
| A67e3 |
Ambient lamp |
23L |
| A67e4 |
Garage door opener indicator lamp |
29L |
| A67h1 |
Automatic dimming interior rearview mirror sensor, forward |
24L |
| A67h2 |
Automatic dimming interior rearview mirror sensor, back |
25L |
| A67h3 |
Automatic dimming mirror |
27L |
| A67n2 |
Garage door opener transmitter unit |
28L |
| A67s1 |
Garage door opener button 1 |
28L |
| A67s2 |
Garage door opener button 2 |
29L |
| A67s3 |
Garage door opener button 3 |
29L |
| B38/2 |
Rain/light sensor |
12K |
| CAN B |
Interior CAN |
43K |
| E11/1 |
Left rear dome lamp |
8L |
| E11/1e1 |
Left rear reading lamp |
8L |
| E11/1e2 |
Left rear interior lamp |
7L |
| E11/1s1 |
Left rear dome lamp switch |
7L |
| E11/2 |
Right rear dome lamp |
15L |
| E11/2e1 |
Right rear reading lamp |
14L |
| E11/2e2 |
Right rear interior lamp |
16L |
| E11/2s1 |
Right rear dome lamp switch |
15L |
| E14/6 |
Left front vanity mirror illumination |
10L |
| E14/7 |
Right front vanity mirror illumination |
18L |
| E15/10 |
Left rear vanity mirror illumination |
20L |
| E15/11 |
Right rear vanity mirror illumination |
19L |
| E15/36 |
Rear ambient lamp |
5L |
| M12 |
Roof system drive unit |
39L |
| M12b1 |
Roof system Hall sensor 1 |
40L |
| M12b2 |
Roof system Hall sensor 2 |
40L |
| M12m1 |
Roof motor |
39L |
| M54 |
Front roller sun blind motor |
32L |
| M54/1 |
Rear roller sun blind motor |
35L |
| M54/1b1 |
Rear roller sun blind Hall sensor 1 |
36L |
| M54/1b2 |
Rear roller sun blind Hall sensor 2 |
36L |
| M54/1m1 |
Rear roller sun blind motor |
35L |
| M54b1 |
Front roller sun blind Hall sensor 1 |
33L |
| M54b2 |
Front roller sun blind Hall sensor 2 |
33L |
| M54m1 |
Front roller sun blind motor |
32L |
| N10/2 |

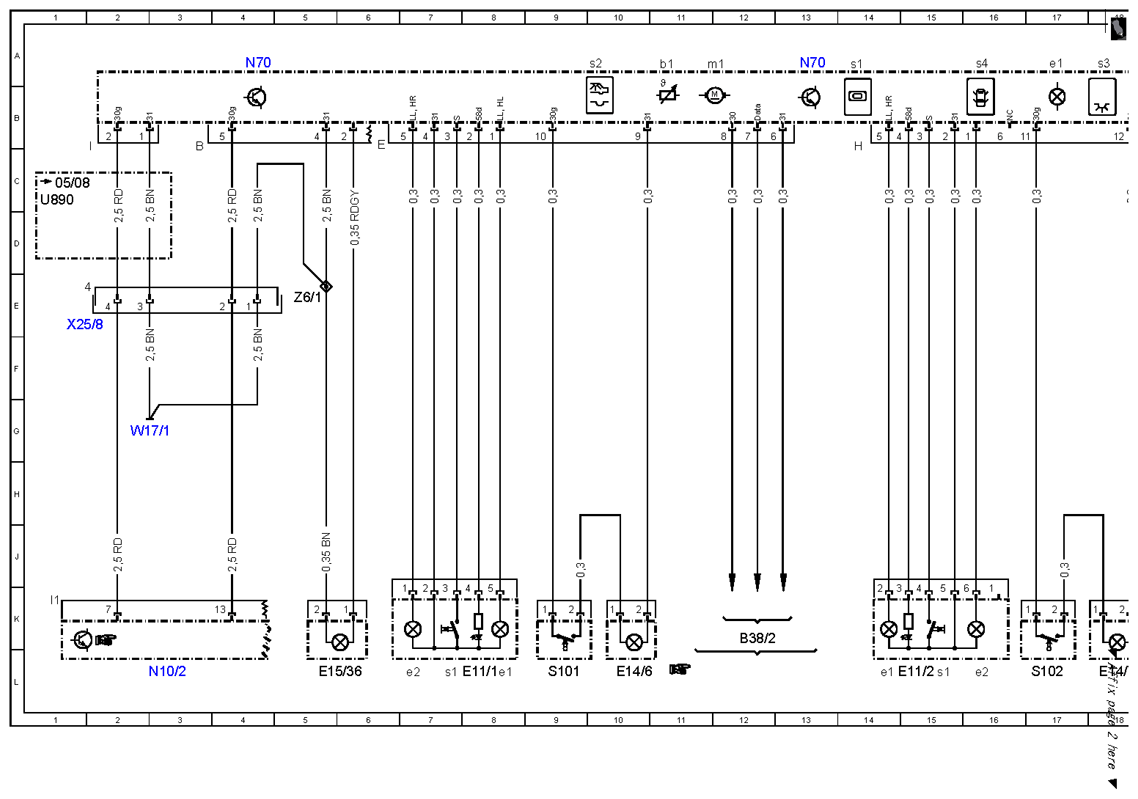

Rear SAM control unit with fuse and relay module |
3L |
| N123/4 |
Emergency call system control unit |
46L |
| N70 |
Overhead control panel control unit |
4A |
| N70 |
Overhead control panel control unit |
13A |
| N70 |
Overhead control panel control unit |
20A |
| N70 |
Overhead control panel control unit |
29A |
| N70 |
Overhead control panel control unit |
36A |
| N70 |
Overhead control panel control unit |
44A |
| N70b1 |
In-car temperature sensor |
11A |
| N70e1 |
Front dome lamp |
17A |
| N70m1 |
In-car temperature sensor fan motor |
11A |
| N70s1 |
Roof switch |
14A |
| N70s10 |
Rear roller sun blind switch |
27A |
| N70s2 |
Rear dome lamp switch |
10A |
| N70s3 |
Door contact ON and OFF switch |
18A |
| N70s4 |
Front dome lamp switch |
16A |
| N70s6 |
Left front reading lamp switch |
22A |
| N70s7 |
Right front reading lamp switch |
27A |
| S101 |
Left front vanity mirror illumination switch |
9L |
| S102 |
Right front vanity mirror illumination switch |
17L |
| S93/3 |

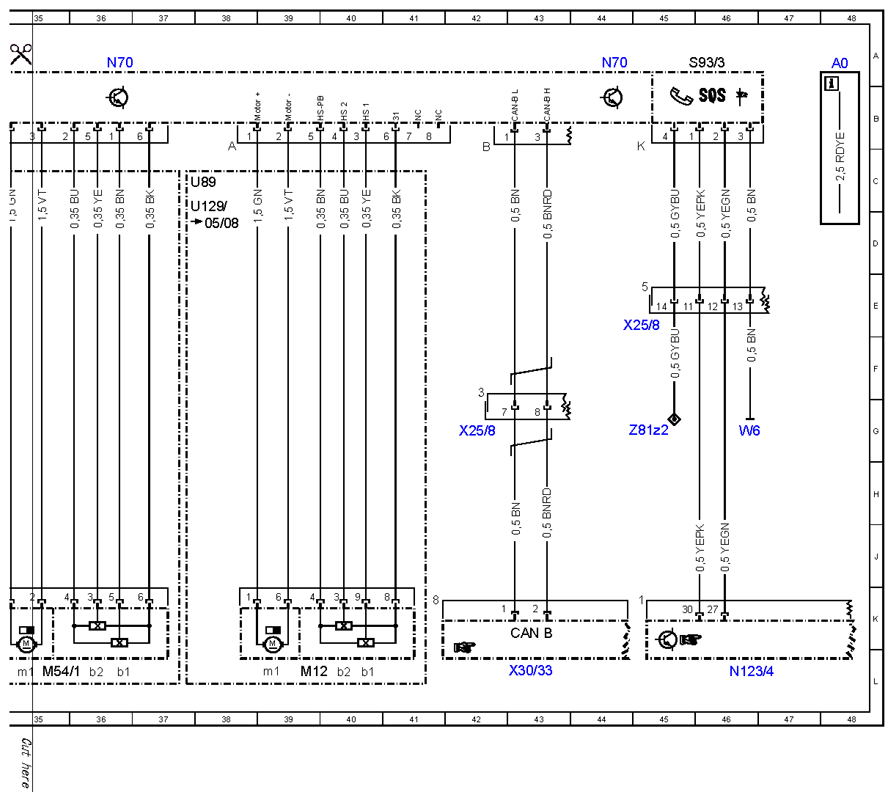

SOS push-button switch |
46A |
| U129 |
Valid for panoramic sliding roof |
30C |
| U129 |
Valid for panoramic sliding roof |
37C |
| U89 |
Valid for tilting/sliding roof (SR [SDH]) |
37C |
| U890 |
Not valid for tilting/sliding roof (SR [SHD]) |
1C |
| W17/1 |
Ground (left rear seat) |
2G |
| W6 |
Ground (left wheelhouse in luggage compartment) |
46G |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
1E |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
42G |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
45E |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
43L |
| Z6/1 |
Ground connector sleeve |
5E |
| Z81z2 |
Circuit 58d connector sleeve |
45G |
