Adaptive Brake (ABR) location of components - GF42.47-P-0001-02LEA

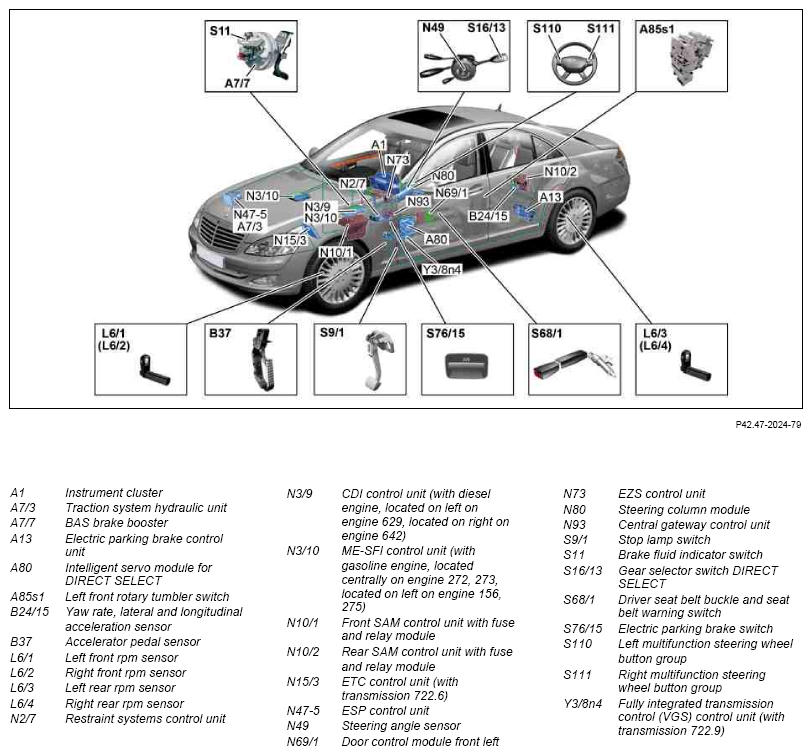

Fig 1: Overview Of Adaptive Brake (ABR) Components - Shown On Model 221.0
G10110301Courtesy of MERCEDES-BENZ USA

Shown on model 221.0 up to 31.8.10 (with basic system)

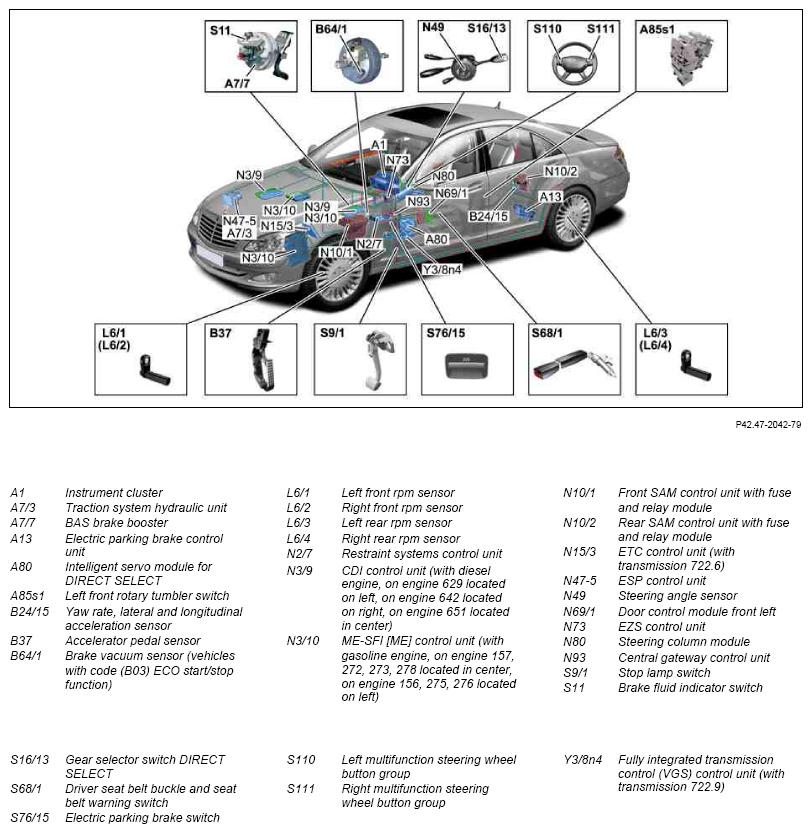

Fig 2: Overview Of Adaptive Brake (ABR) Components - Shown On Model 221.0
G10110302Courtesy of MERCEDES-BENZ USA

Shown on model 221.0 as of 1.9.10 (with basic system)
