Remove/install side paneling in rear - AR68.30-P-4780SXS
MODEL 221.1 with CODE (Z07) Top protection

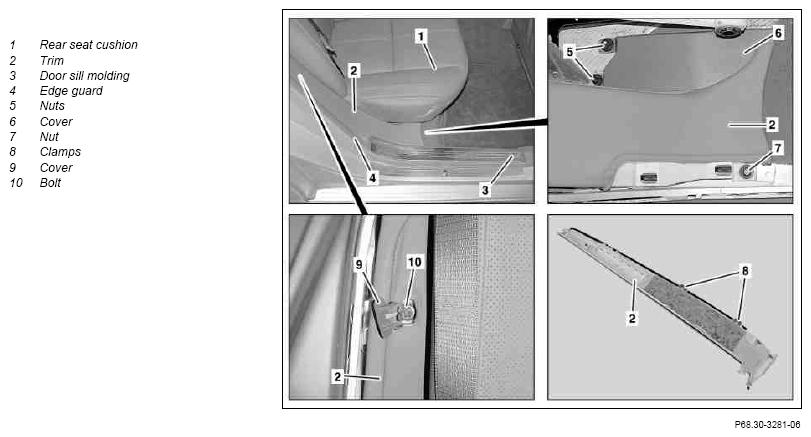

Shown on right side of vehicle
| Remove/install | |||
| 1 | Remove left or right rear seat cushion (1) and place to one side with electrical line connected | AR91.12-P-1020SXS | |
| 2 | Remove door sill molding (3) | AR68.30-P-4100SXS | |
| 3 | Detach edge guard (4) in area of door sill molding (3) and paneling (2) | ||
| 4 | Remove nuts (5) and remove cover (6) | ||
| 5 | Remove nut (7) | ||
| 6 | Unclip cover (9) and remove screw (10) | ||
| 7 | Unclip paneling (2) from bottom upward and remove | Figure | |
| 8 | Install in the reverse order |
