Remove/install outer rear door handle - AR72.12-P-2410SXS

MODEL 221.1 with CODE (Z07) Top protection

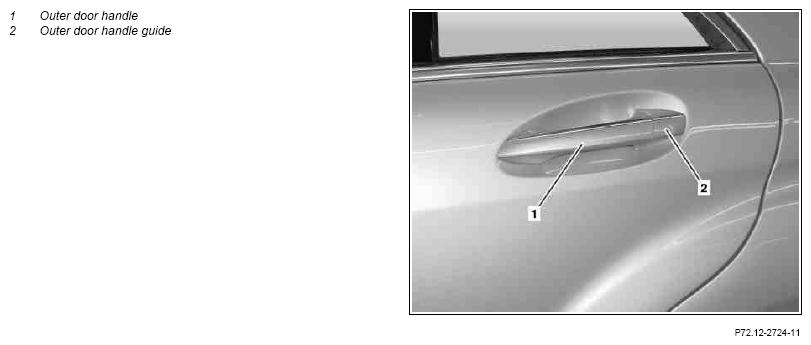

Fig 1: Identifying Outer Rear Door Handle Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove grommet on front side of left and right rear door, loosen screw beneath and remove outer door handle guide (2)	TORX-screwdriver, length 250 mm, T20	*BA72.12-P-1021-01N
2	Pull outer door handle (1) out of bearing bracket toward rear and remove	Ensure that seals are seated correctly on rear door and outer door handle (1) in bearing bracket.
3	Install in the reverse order

REAR DOOR

Number	Designation		Model 221 with code Z07/Z07+Z19
BA72.12-P-1021-01N	Bolt, guide ton rear door	Nm	3
