Check door locks and lubricate - AP72.00-P-7253SX

MODEL 221 with CODE (Z07) maximum protection

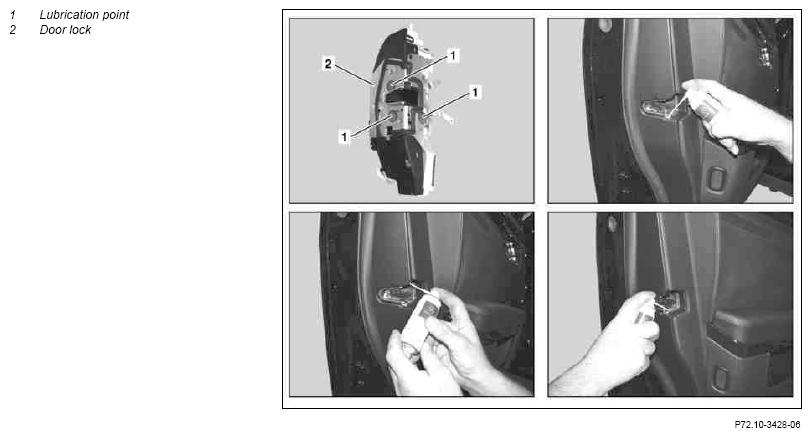

Fig 1: Checking Door Locks And Lubricate

Courtesy of MERCEDES-BENZ USA

	Checking
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Risk of explosion  from pressurized spray cans	Protect cans from direct sunlight and temperatures above 50 °C.	AS00.00-Z-0015-01A
1	Park the vehicle on a level, horizontal surface	Park the vehicle on its wheels and pay attention to an adequate gap in the door opening area otherwise damage to the body may occur.
2	Check door lock emergency unlocking function on driver door for proper function		AP72.00-P-7253-01SX
	Lubricate
3	Open driver door and spray lock cylinder grease on the lubrication points (1) on the door lock (2)	Only lubricate the door locks on the driver/front passenger door Lubricating the door rear door locks can lead to damage of the power closing function! Only apply lock cylinder-grease to the marked points, to do this, position the spray tube of the spray can as shown. Use 12.5 ml of lock cylinder grease for each door lock.
		Lock cylinder grease spray, 50 ml	*BR00.45-Z-1012-06A
4	Close driver door	Open and close driver door 2 to 3 times in a controlled manner.
5	Repeat steps 3 and 4 on the front passenger door

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1012-06A	Lock cylinder grease spray, 50 ml	A 002 989 06 51
