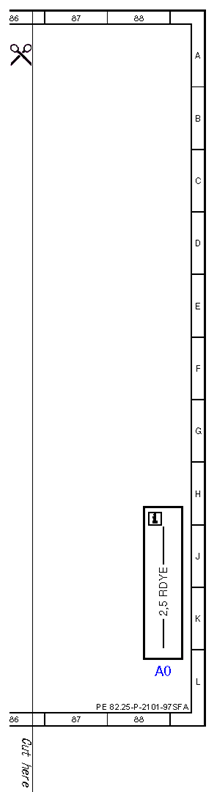

| A0 |
Color code key |
88L |

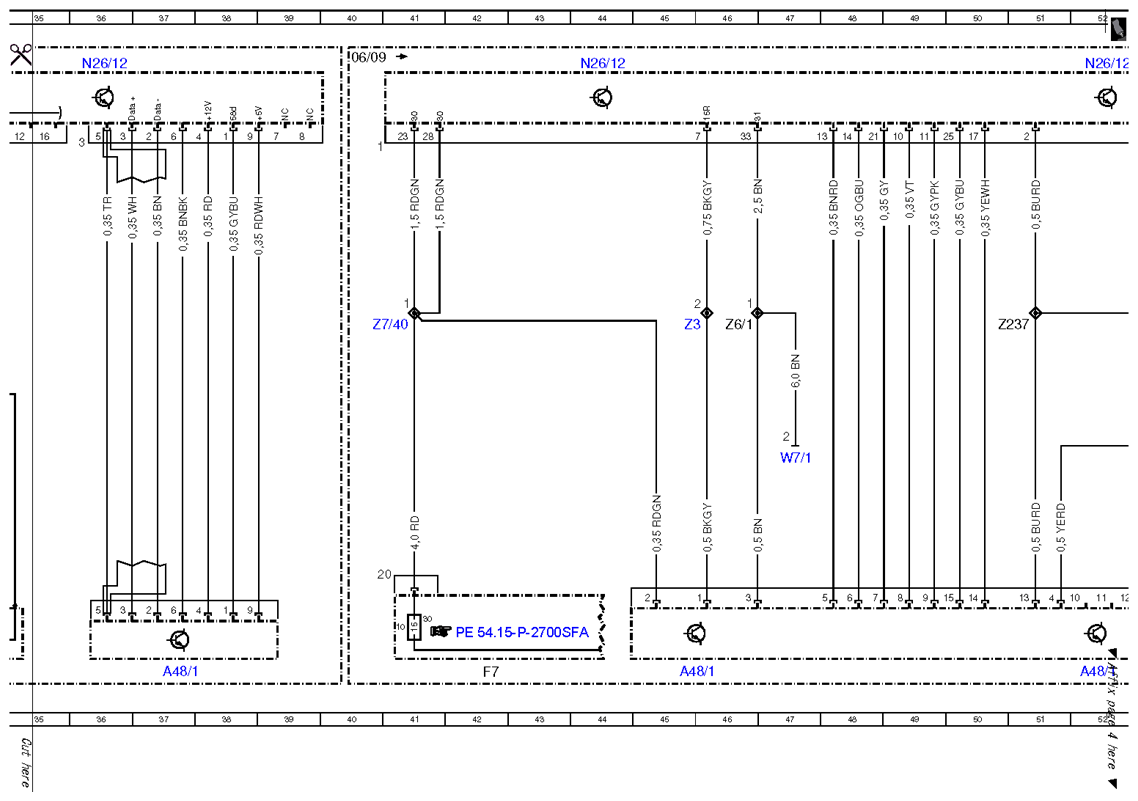

| A48/1 |
Special signal system control panel |
37L |
| A48/1 |
Special signal system control panel |
52L |
| A48/1 |
Special signal system control panel |
45L |

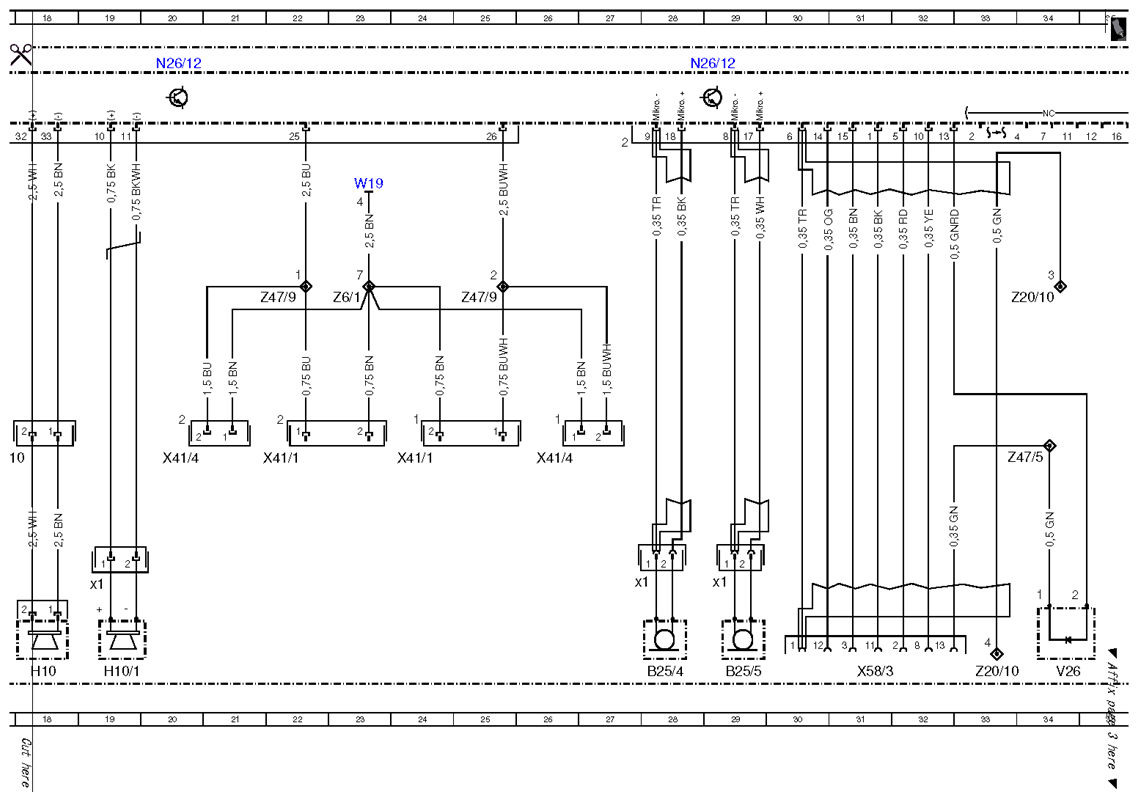

| B25/4 |
Left outside mirror microphone |
81L |
| B25/4 |
Left outside mirror microphone |
28L |
| B25/4x1 |
Left outside mirror microphone connector |
27J |
| B25/4x1 |
Left outside mirror microphone connector |
80J |
| B25/5 |
Right outside mirror microphone |
29L |
| B25/5 |
Right outside mirror microphone |
82L |
| B25/5x1 |
Right outside mirror microphone connector |
29J |
| B25/5x1 |
Right outside mirror microphone connector |
82J |
| F7 |
Fuse box I, rear |
4L |
| F7 |
Fuse box I, rear |
42L |
| F7f10 |
Fuse 10 |
3K |
| F7f10 |
Fuse 10 |
41K |
| H10 |
Outside speaker |
18L |
| H10 |
Outside speaker |
68L |
| H10 |
Outside speaker |
67L |

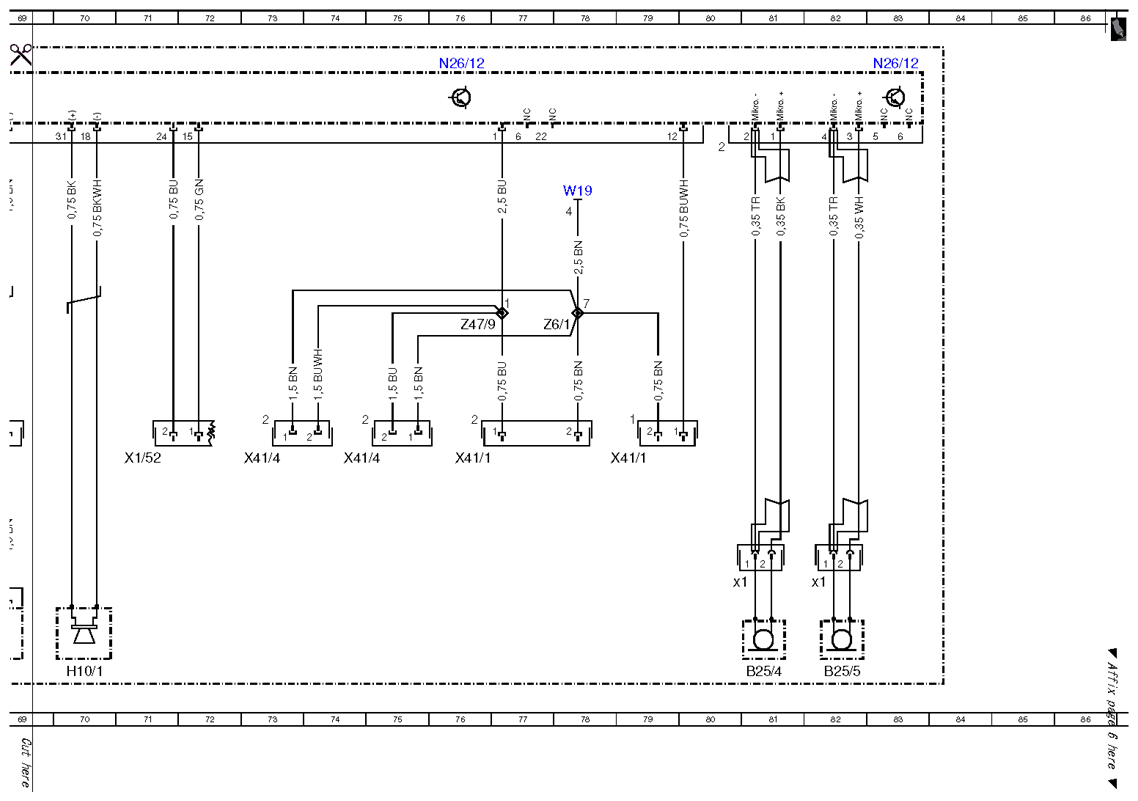

| H10/1 |
Inside speaker |
19L |
| H10/1 |
Inside speaker |
70L |
| H10/1x1 |
Inside speaker connector |
19K |

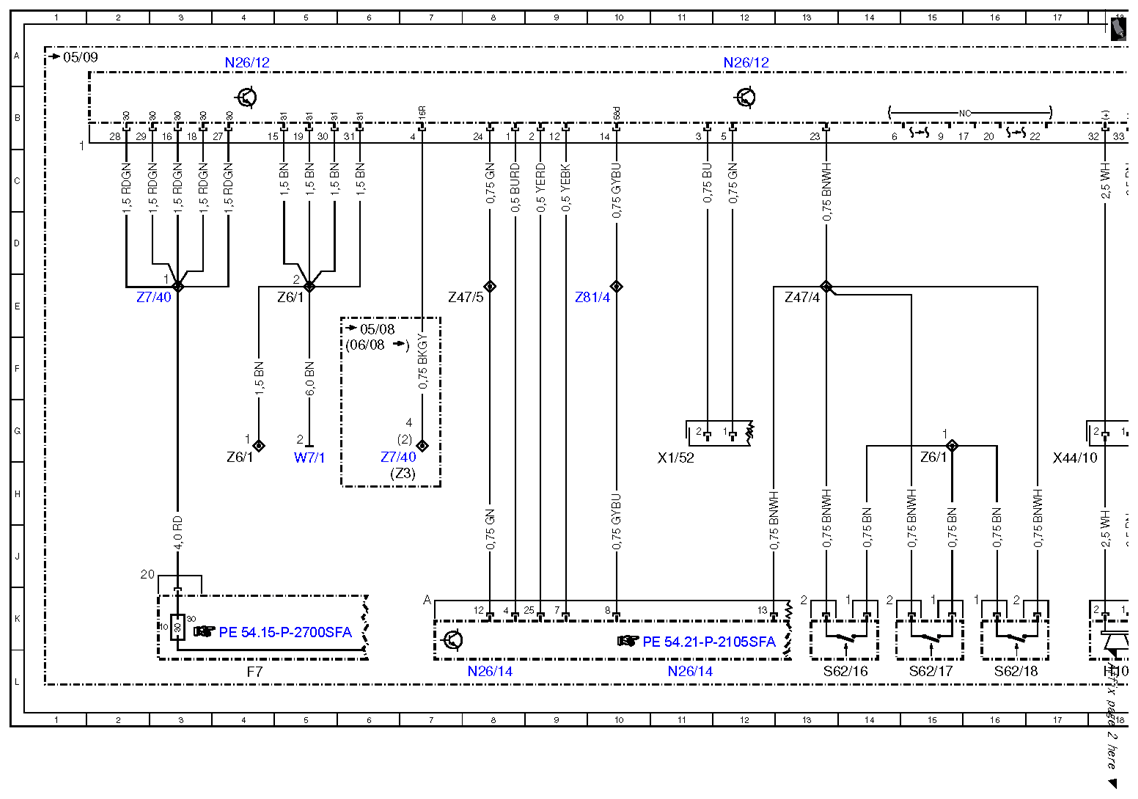

| N26/12 |
PAS [GAS] and special signal system control unit |
4A |
| N26/12 |
PAS [GAS] and special signal system control unit |
12A |
| N26/12 |
PAS [GAS] and special signal system control unit |
20A |
| N26/12 |
PAS [GAS] and special signal system control unit |
28A |
| N26/12 |
PAS [GAS] and special signal system control unit |
36A |
| N26/12 |
PAS [GAS] and special signal system control unit |
44A |
| N26/12 |
PAS [GAS] and special signal system control unit |
52A |
| N26/12 |
PAS [GAS] and special signal system control unit |
60A |
| N26/12 |
PAS [GAS] and special signal system control unit |
68A |
| N26/12 |
PAS [GAS] and special signal system control unit |
76A |
| N26/12 |
PAS [GAS] and special signal system control unit |
83A |

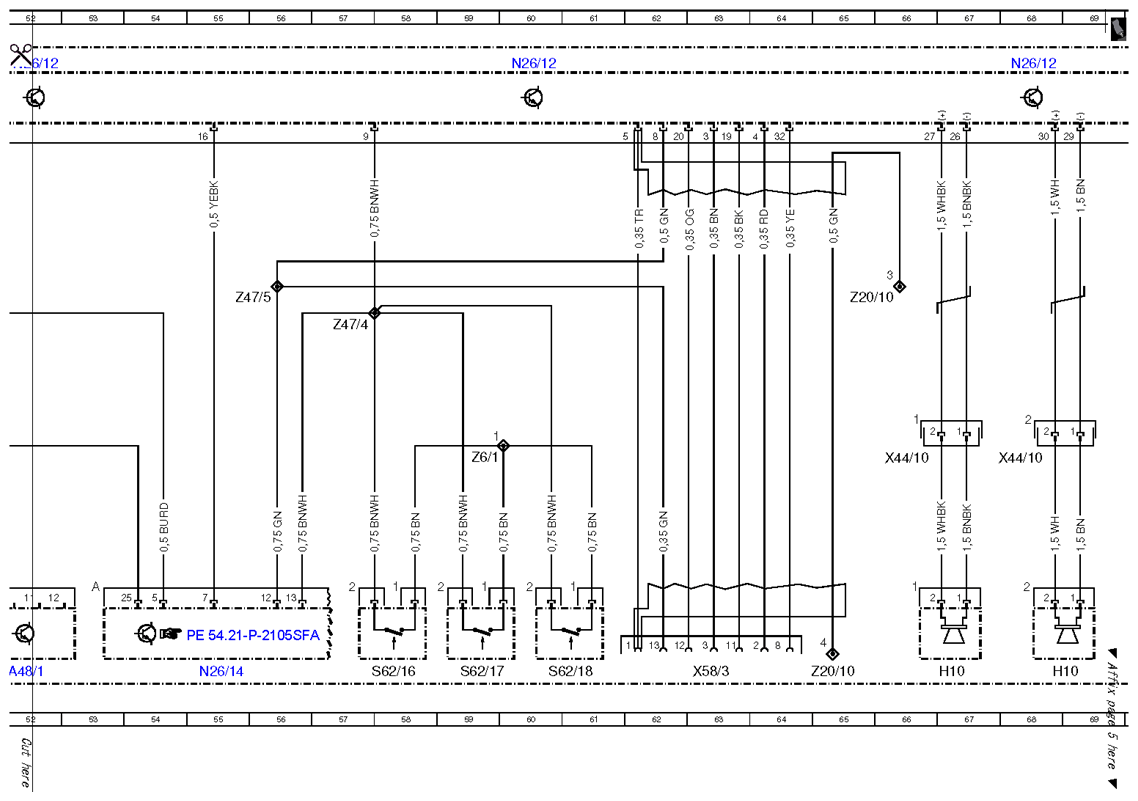

| N26/14 |
Special vehicle multifunction control unit (SVMCU [MSS]) |
8L |
| N26/14 |
Special vehicle multifunction control unit (SVMCU [MSS]) |
11L |
| N26/14 |
Special vehicle multifunction control unit (SVMCU [MSS]) |
55L |
| S62/16 |
Left knee bolster emergency alarm activate button |
13L |
| S62/16 |
Left knee bolster emergency alarm activate button |
58L |
| S62/17 |
Right knee bolster emergency alarm activate button |
15L |
| S62/17 |
Right knee bolster emergency alarm activate button |
59L |
| S62/18 |
Rear fresh air outlet emergency alarm activate button |
16L |
| S62/18 |
Rear fresh air outlet emergency alarm activate button |
60L |
| V26 |
Overvoltage protection diode |
34L |
| W19 |
Ground (right front seat crossmember) |
23C |
| W19 |
Ground (right front seat crossmember) |
78C |
| W7/1 |
Ground (right taillamp in trunk) |
5H |
| W7/1 |
Ground (right taillamp in trunk) |
47H |
| X1/52 |
Authorities peripherals separation point |
11H |
| X1/52 |
Authorities peripherals separation point |
71H |
| X41/1 |
Blue light separation point |
24H |
| X41/1 |
Blue light separation point |
22H |
| X41/1 |
Blue light separation point |
76H |
| X41/1 |
Blue light separation point |
79H |
| X41/4 |
Police beacon separation point |
20H |
| X41/4 |
Police beacon separation point |
26H |
| X41/4 |
Police beacon separation point |
73H |
| X41/4 |
Police beacon separation point |
74H |
| X44/10 |
PAS [GAS] outside speaker connector |
17H |
| X44/10 |
PAS [GAS] outside speaker connector |
68H |
| X44/10 |
PAS [GAS] outside speaker connector |
66H |
| X58/3 |
Microphone separation point |
31L |
| X58/3 |
Microphone separation point |
63L |
| Z20/10 |
Cable end insulation not stripped, placed inside insulated tubing |
33L |
| Z20/10 |
Cable end insulation not stripped, placed inside insulated tubing |
65L |
| Z20/10 |
Cable end insulation not stripped, placed inside insulated tubing |
34E |
| Z20/10 |
Cable end insulation not stripped, placed inside insulated tubing |
65E |
| Z237 |
|
51E |
| Z3 |
Tml. 15 connector sleeve |
7H |
| Z3 |
Tml. 15 connector sleeve |
45E |
| Z47/4 |
Alarm ON connector sleeve |
13E |
| Z47/4 |
Alarm ON connector sleeve |
57E |
| Z47/5 |
Alarm off connector sleeve |
34G |
| Z47/5 |
Alarm off connector sleeve |
8E |
| Z47/5 |
Alarm off connector sleeve |
56E |
| Z47/9 |
Blue priority vehicle warning light, separation point connector sleeve |
22E |
| Z47/9 |
Blue priority vehicle warning light, separation point connector sleeve |
25E |
| Z47/9 |
Blue priority vehicle warning light, separation point connector sleeve |
76E |
| Z6/1 |
Ground connector sleeve |
4G |
| Z6/1 |
Ground connector sleeve |
15G |
| Z6/1 |
Ground connector sleeve |
59G |
| Z6/1 |
Ground connector sleeve |
5E |
| Z6/1 |
Ground connector sleeve |
23E |
| Z6/1 |
Ground connector sleeve |
46E |
| Z6/1 |
Ground connector sleeve |
78E |
| Z7/40 |
Tml. 30 connector sleeve |
6G |
| Z7/40 |
Tml. 30 connector sleeve |
3E |
| Z7/40 |
Tml. 30 connector sleeve |
41E |
| Z81/4 |
FFS [RBA] circuit 58d connector sleeve |
10E |
