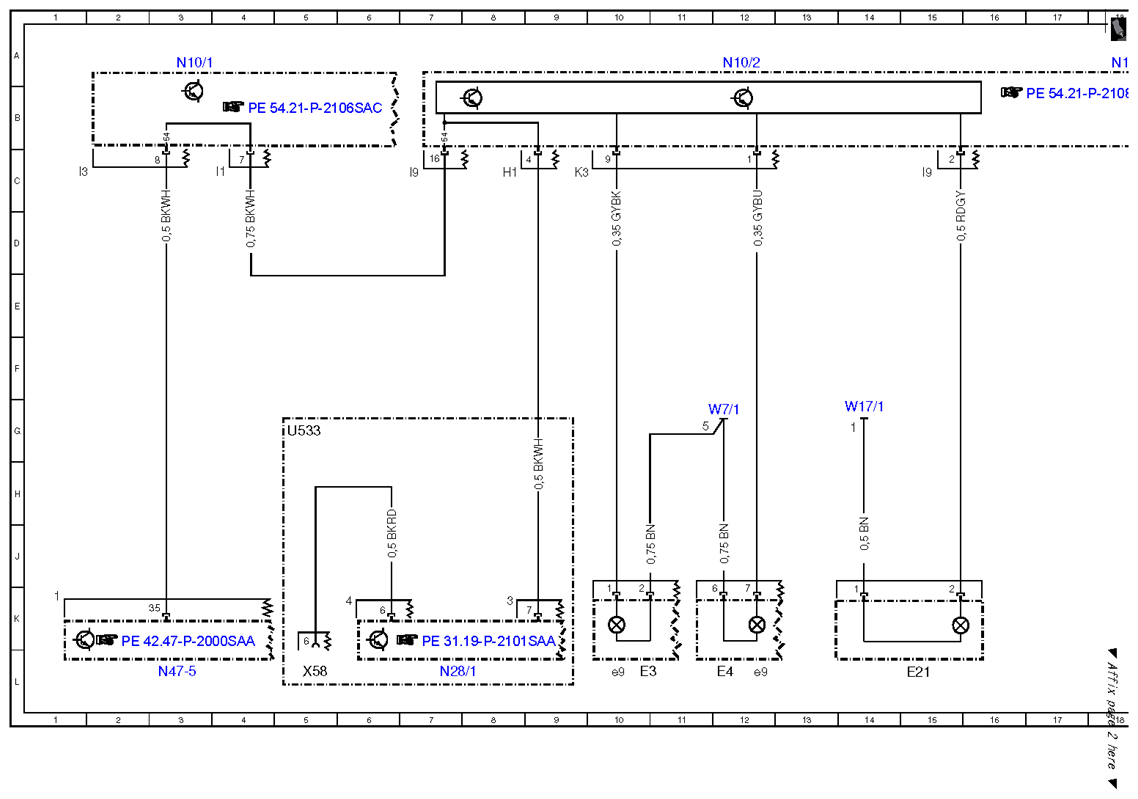

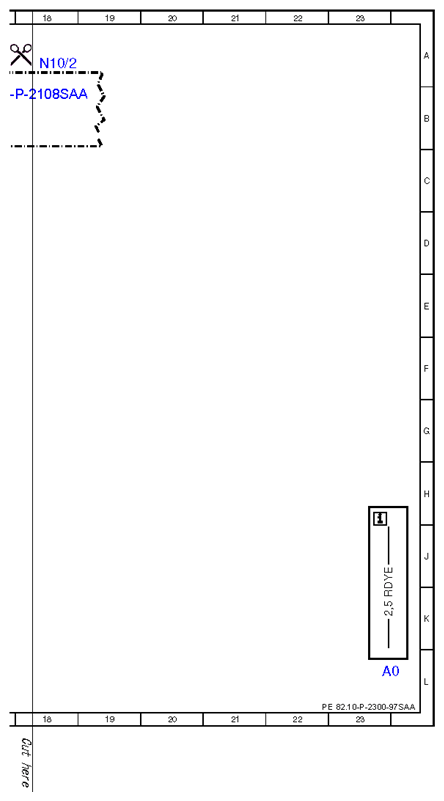

| A0 |
Color code key |
23L |
| E21 |
Center high-mounted stop lamp |
15L |
| E3 |
Left taillamp |
10L |
| E3e9 |
Left stop lamp, taillamp and parking lamp |
10L |
| E4 |
Right taillamp |
12L |
| E4e9 |
Right stop lamp, taillamp and parking lamp |
12L |
| N10/1 |
Front SAM control unit with fuse and relay module |
3A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12A |
| N10/2 |
Rear SAM control unit with fuse and relay module |
18A |
| N28/1 |
Trailer recognition control unit |
7L |
| N47-5 |
ESP control unit |
3L |
| U533 |
Valid for trailer hitch |
5G |
| W17/1 |
Ground (left rear seat) |
14G |
| W7/1 |
Ground (right taillamp in trunk) |
12G |
| X58 |
Trailer hitch socket (13-pin) |
5L |
