Removing and installing transmitter/receiver unit - AR82.70-P-8911M
MODEL 215, 220 as of 1.7.00 with CODE (853) MB standard cellular telephone
Shown on model 220
| Removal, installation | |||
| 1 | Connect quiescent current retention unit | *WH58.30-Z-1012-09A | |
| Risk of explosion caused by escaping oxyhydrogen gas. Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries caused by short circuit. Risk of poisoning caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices | No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground. Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers. |
||
| 2 | Disconnect ground cable of battery | ||
| Notes on battery | All models. | ||
| 3.1 | Remove rear seat cushion | Model 215. | AR91.12-P-1020N |
| Model 220. | |||
| 3.2 | Remove bucket seats | Model 220 with code 401, right side only. | |
| 4 | Remove seat adjustment mechanism on rear seat | Model 220 with code 401, right side only. | |

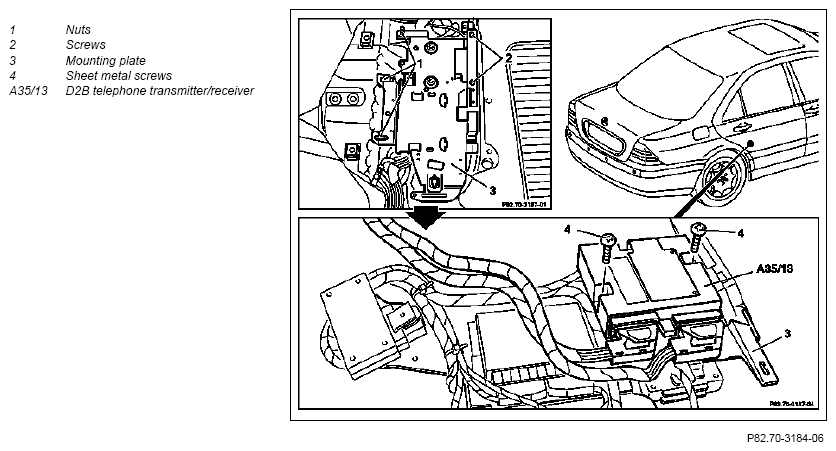

| 5 | Unscrew screws (1) and nuts (2) and remove mounting plate (3) from vehicle floor | ||
| 6 | Release connectors on D2B telephone transmitter/receiver (A35/13) and disconnect | ||
| 7 | Unscrew sheet metal screws (4) | ||
| 8 | Install in the reverse order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
