Remove |
|
|
| 1 |
Remove compressor unit (A9/1) |
|
AR32.22-P-2001SX |
 |
Checking |
|
|
| 2 |
Check bracket of compressor unit (A9/1) |
If the threaded rods (1) are damaged or have galling, the bracket of the compressor unit (A9/1) must be replaced, see: ↓ |
|
| Replace bracket of compressor unit. |
AR32.22-P-2009SX |
| 3 |

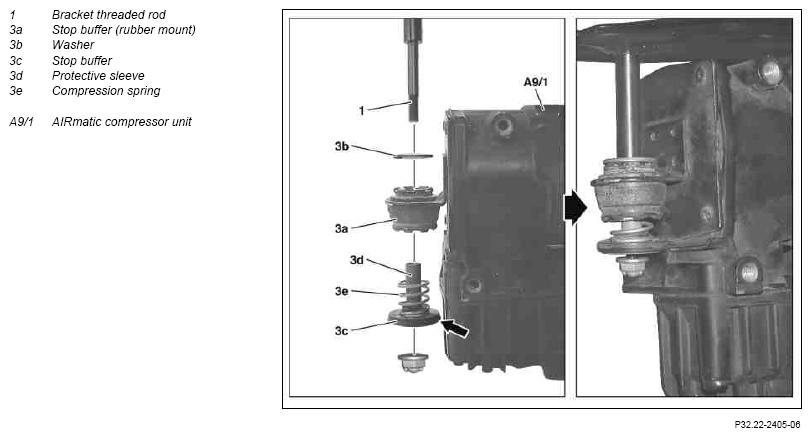

Push stop buffer (3a) out of eyelet on compressor unit (A9/1) |
Replace stop buffer (3a) and attaching parts of compressor unit (A9/1)! If the stop buffer and (3a) and attaching parts are reused, knocking and thumping noises may occur. |
|
 |
Install |
|
|
| 4 |
Insert stop buffer (3a) into eyelet on compressor unit (A9/1) |
The raised section of the stop buffer (3a) must face downwards. The groove of the stop buffer (3a) must latch all round its total circumference into the eyelet on the compressor unit (A9/1). |
|
| 5 |
Fit shim (3b) onto stop buffer (3a) |
|
|
| 6 |
Slide stop buffer (3c) onto protective sleeve (3d) |
The outer lip of the stop buffer (3c) must enclose the washer of the protective sleeve (3d) around its total circumference (arrow). |
|
| 7 |
Mount push spring (3e) onto protective sleeve (3d) |
The push spring (3e) is centered by a molding on the stop buffer (3c). |
|
| 8 |
Install compressor unit (A9/1) |
|
AR32.22-P-2001SX |
