Check AIRmatic for leaks - AR32.22-P-8100SX

MODEL 221.0/1

MODEL 216 With 4MATIC

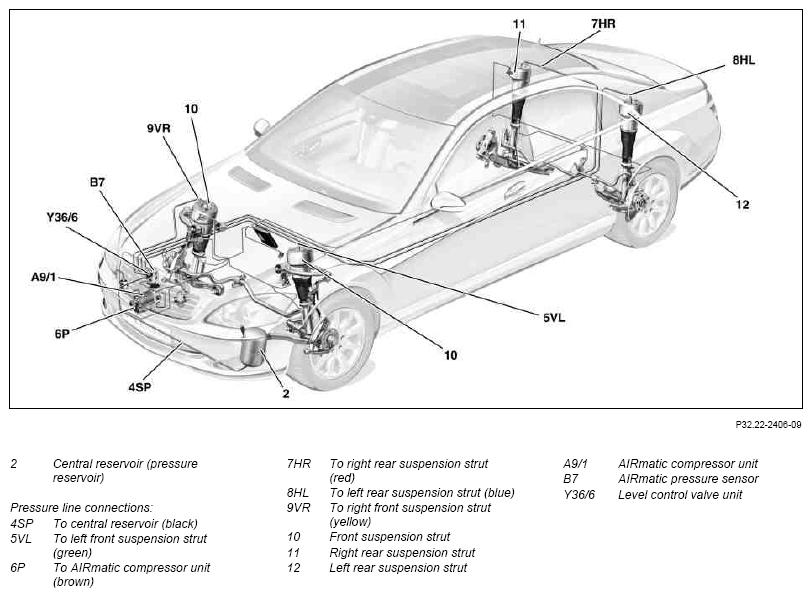

Fig 1: Checking AIRMATIC For Leaks - Shown On Model 221.056

Courtesy of MERCEDES-BENZ USA

Illustrated on model 221.056

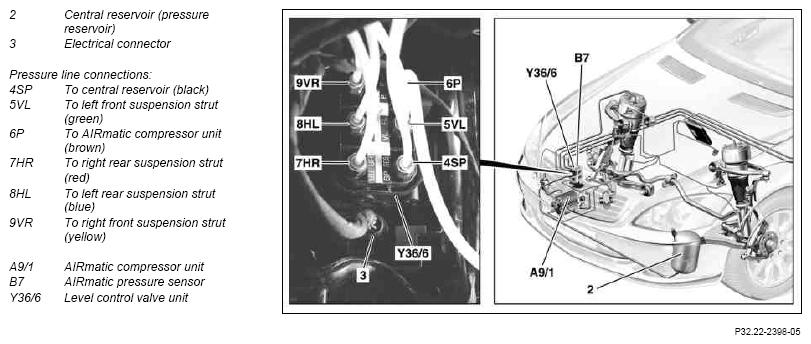

Fig 2: Checking AIRMATIC For Leaks

Courtesy of MERCEDES-BENZ USA

	Removing
	Risk of death caused by vehicle slipping or toppling off of the lifting platform	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on AIRmatic		AH32.22-P-1000-02SX
1	Remove front section of lower engine compartment paneling	Vehicles without code (Z07) Top protection	AR61.20-P-1105SX
1	Remove front section of lower engine compartment paneling	Vehicles with code (Z07) Top protection	AR61.20-P-1105SXS
2	Remove fender liner in front fenders
	Checking
3	Spray pressure line connections with leak detector spray	Cover objects (rear shelf, head restraints etc.) in the vicinity of the spraying area with a clean rag. Spray the following pressure line connections: Connections (4SP, 5VL, 6P, 7HR, 8HL, 9VR) on valve unit (Y36/6), connection (4SP) of compressor unit (A9/1), connection (4SP) on central reservoir (2), connections (5VL, 9VR) and areas of adhesive on front suspension struts (10), connections (7HR, 8HL) and areas of adhesive on rear suspension struts (11, 12). Wait for approx. 10 to 15 min. after spraying the pressure line connections with leak detection spray. This allows smaller leaks to be detected (bubbles form). Larger leaks are visible immediately.
		Leak detection spray	*BR00.45-Z-1002-03A
		for USA	*BR00.45-Z-1004-03A
		If pressurized line connection fitting is defective: ↓
		Repair AIRmatic pressure line connection.	AR32.22-P-2001-02SX
			*BA32.22-P-1002-03D
			*BA32.22-P-1004-03D
			*BA32.22-P-1006-03D
			*BA32.25-P-1003-04L
			*BA32.25-P-1006-04L
			Figure
			Figure
		Leak detection spray	*BR00.45-Z-1002-03A
		for USA	*BR00.45-Z-1004-03A
	Install
4	Install fender liner in front fenders
5	Fit front section of lower engine compartment paneling	Vehicles without code (Z07) Top protection	AR61.20-P-1105SX
5	Fit front section of lower engine compartment paneling	Vehicles with code (Z07) Top protection	AR61.20-P-1105SXS

AIR SUSPENSION

Number	Designation		Model 216	Model 221
BA32.22-P-1002-03D	Pressure line air suspension to pressure reservoir	Nm	5	5
BA32.22-P-1004-03D	Pressure line, air suspension to compressor	Nm	5	5
BA32.22-P-1006-03D	Pressure line of air suspension to valve unit	Nm	3	3

SUSPENSION STRUTS

Number	Designation		Model 216 with 4MATIC	Model 221 without 4MATIC and without code 487, Z07/Z07+Z19
BA32.25-P-1003-04L	Air suspension pressure line to suspension strut	Nm	5	5
BA32.25-P-1006-04L	Air suspension pressure line to rear air spring	Nm	5	5

SUSPENSION STRUTS

Number	Designation		Model 221 with code Z07/Z07+Z19	Model 221 with 4MATIC
BA32.25-P-1003-04L	Air suspension pressure line to suspension strut	Nm	5	5
BA32.25-P-1006-04L	Air suspension pressure line to rear air spring	Nm	5	5

Fig 3: Identifying Slitting Knife (000 589 12 28 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Wrench Socket (211 589 00 09 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-03A	Leak detection spray	Christof Fischer GmbH,
BR00.45-Z-1004-03A	Leakage spray for USA	LIQUI MOLY
