AIRMATIC, location of components - GF32.22-P-0003-05LEA

MODEL 221.0 except CODE (487) Active Body Control (ABC) as of Model Year 2010 /AEJ 09 MOPF

MODEL 221.1 except CODE (487) Active Body Control (ABC) except CODE (Z07) Top protection as of Model Year 2010 /AEJ 09 MOPF

MODEL 216.3 with CODE (489) AIRMATIC (air suspension with continuous damper adjustment) as of Model Year 2010 /AEJ 09

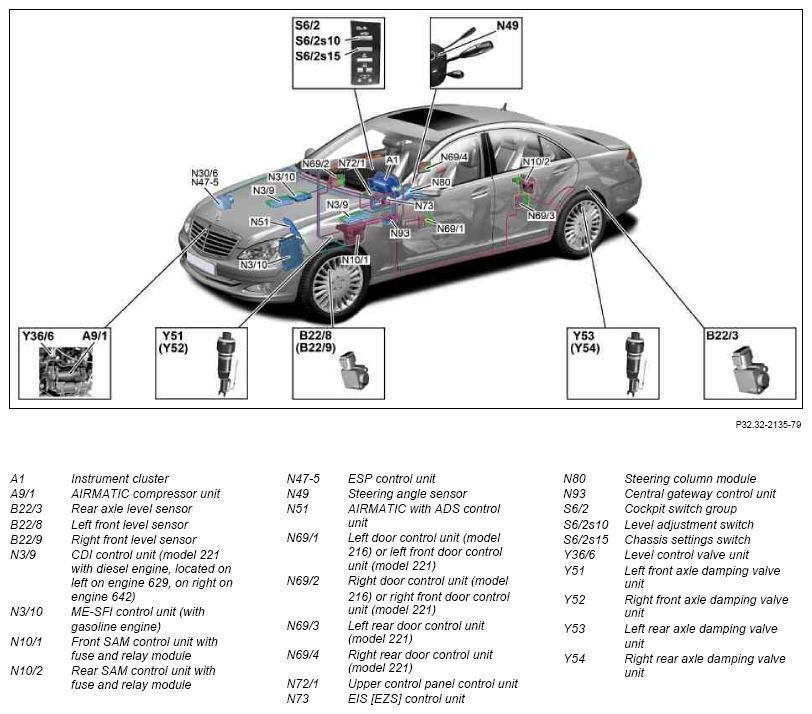

Fig 1: Overview Of AIRMATIC Components - Shown On Model 221.0
G10109239Courtesy of MERCEDES-BENZ USA

Shown on model 221.0
