Remove and install center air nozzle - AR83.10-P-4503SX

MODEL 216.3, 221.0/1

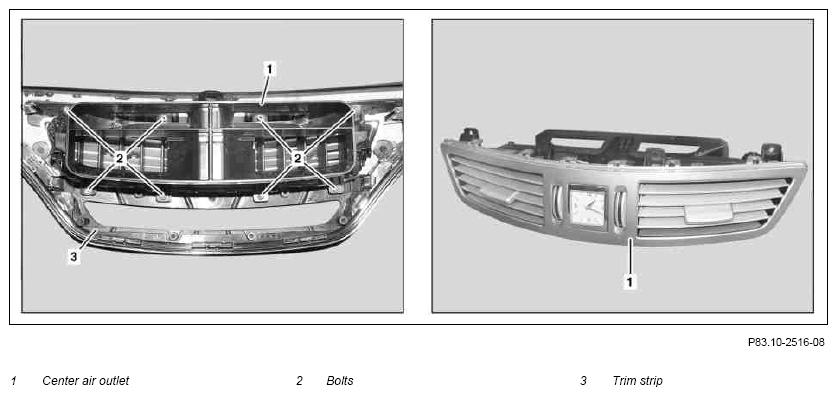

Fig 1: Identifying Center Air Nozzle Remove/Install Components - Shown On Model 221

Courtesy of MERCEDES-BENZ USA

Model 221

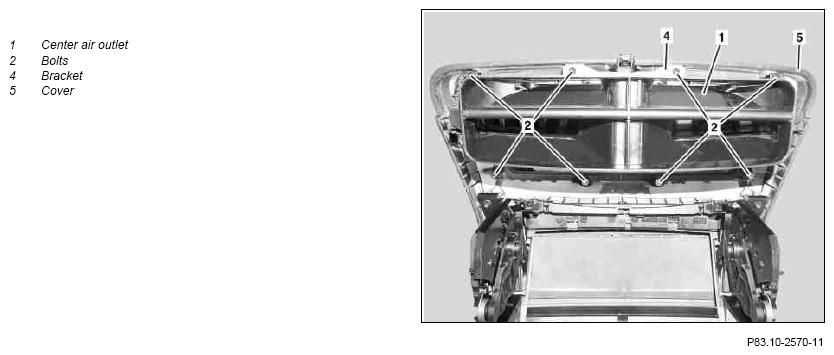

Fig 2: Identifying Center Air Nozzle Remove/Install Components - Shown On Model 216

Courtesy of MERCEDES-BENZ USA

Model 216

	Remove/install
1	Remove upper control panel control unit		AR54.21-P-1262SX
2	Remove bolts (2)
3.1	Remove bracket (4)	Model 216
4.1	Remove center air outlet (1) from cover (5).	Model 216
4.2	Remove center air outlet (1) from trim strip (3).	Model 221
5	Install in the reverse order
