Wiring diagram of drive train CAN - PE00.19-P-2170-97SAA

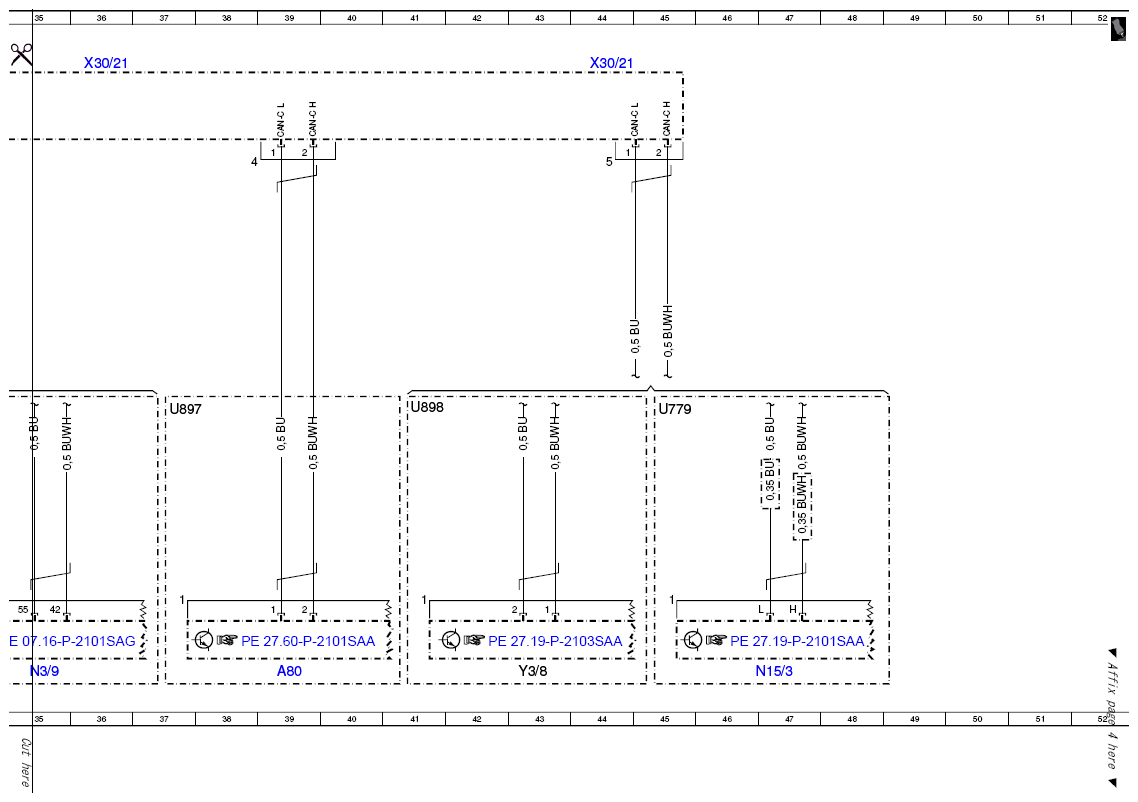

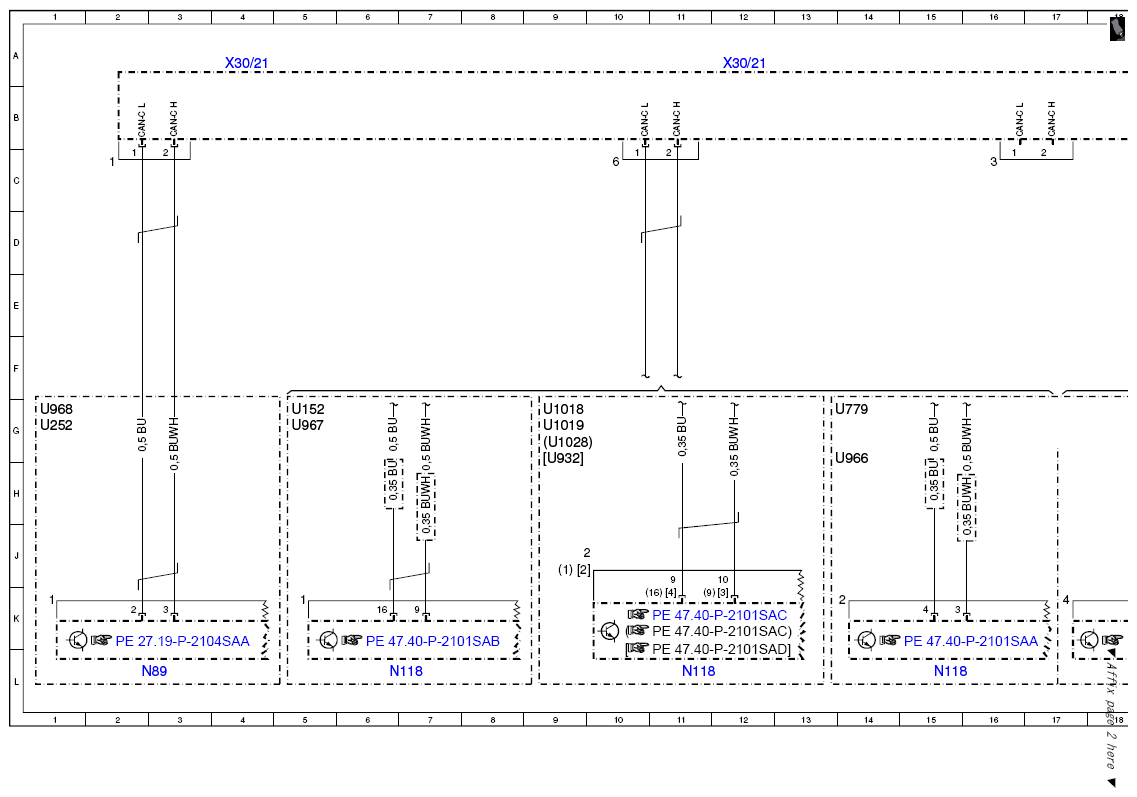

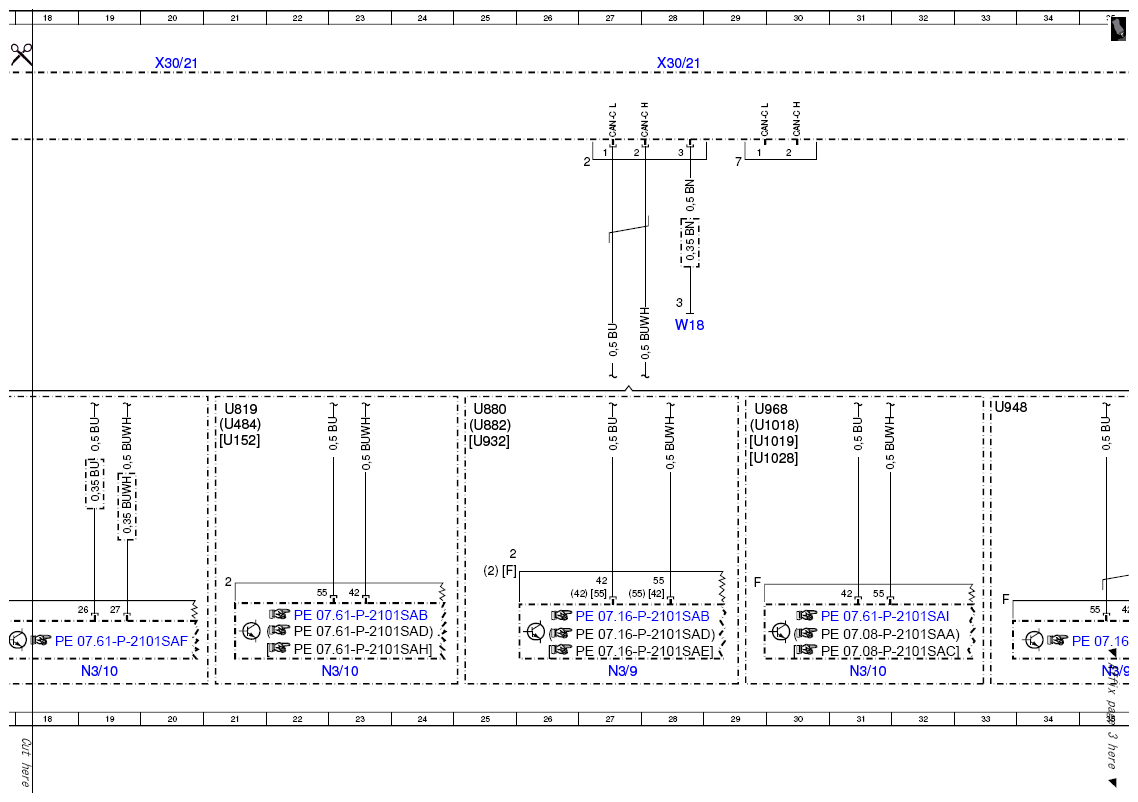

MODEL 221.0 /1 Potential distributor X30/21
| Code: | Designation: | Position: |
|---|---|---|

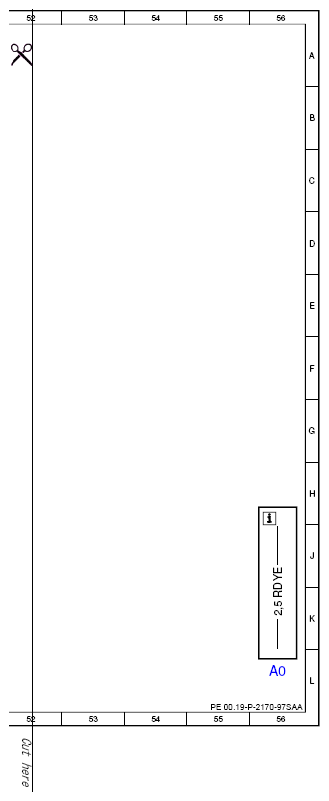

| A0 | Color code key | 56L |
| A80 | Intelligent servo module for DIRECT SELECT | 39L |
| N118 | Fuel pump control unit | 15L |
| N118 | Fuel pump control unit | 7L |
| N118 | Fuel pump control unit | 11L |
| N15/3 | ETC [EGS] control unit | 47L |
| N3/10 | ME-SFI [ME] control unit | 19L |
| N3/10 | ME-SFI [ME] control unit | 23L |
| N3/10 | ME-SFI [ME] control unit | 31L |
| N3/9 | CDI control unit | 27L |
| N3/9 | CDI control unit | 35L |
| N89 | Transmission oil auxiliary pump control unit | 3L |
| U1018 | Valid for gasoline engine 276 | 9G |
| U1018 | Valid for gasoline engine 276 | 29G |
| U1019 | Valid for engine 278 | 9G |
| U1019 | Valid for engine 278 | 29G |
| U1028 | Valid for engine 157 | 9G |
| U1028 | Valid for engine 157 | 29H |
| U152 | Valid for engine 156 | 21G |
| U152 | Valid for engine 156 | 5G |
| U252 | Valid for ECO start/stop function | 1G |
| U484 | Valid for M273 ME | 21G |
| U779 | Valid for engine 275 | 13G |
| U779 | Valid for engine 275 | 45G |
| U819 | Valid for engine 272 | 21G |
| U880 | Valid for engine 642 | 25G |
| U882 | Valid for engine 629 | 25G |
| U897 | Valid for intelligent servo module for DIRECT SELECT | 37G |
| U898 | Not valid for M275 | 41G |
| U932 | Valid for engine 642 BLUETEC | 25G |
| U932 | Valid for engine 642 BLUETEC | 9H |
| U948 | Valid for diesel engine 651 | 33G |
| U966 | Valid for engine 275.953 | 13H |
| U967 | Valid for engine 275.982 | 5G |
| U968 | Valid for mild hybrid drive | 1G |
| U968 | Valid for mild hybrid drive | 29G |
| W18 | Ground (left front seat crossmember) | 28E |
| X30/21 | Drive train CAN voltage distributor connector | 4A |
| X30/21 | Drive train CAN voltage distributor connector | 12A |
| X30/21 | Drive train CAN voltage distributor connector | 20A |
| X30/21 | Drive train CAN voltage distributor connector | 28A |
| X30/21 | Drive train CAN voltage distributor connector | 36A |
| X30/21 | Drive train CAN voltage distributor connector | 44A |
| Y3/8 | Electric control unit (VGS) | 43L |
