Remove/install retaining lock for crankshaft/ring gear - AR03.30-P-5000SX
ENGINES 157, 273, 278 in MODEL 216
ENGINES 157, 272, 273, 276, 278 (except 272.974) in MODEL 221
Shown on vehicle without 4-MATIC

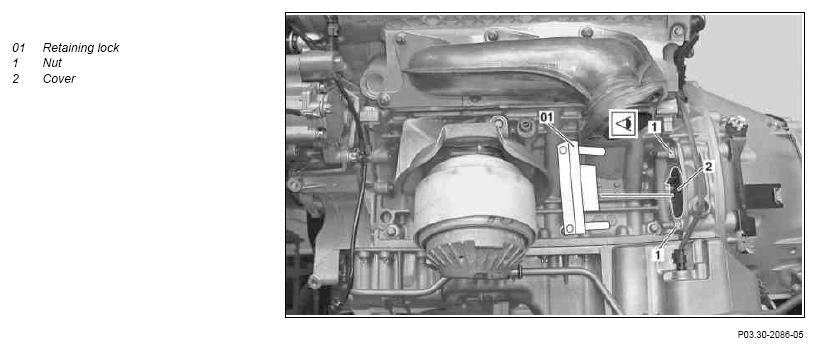

Fig 1: Identifying Crankshaft/Ring Gear Retaining Lock Remove/Install Components - Shown On Vehicle Without 4-Matic
| Installing, removing | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| 1 | Remove shield above the front axle transmission drive shaft | Vehicles with 4MATIC | |
| *BA33.30-P-1009-03G | |||
| 2 | Unscrew nuts (1) and remove bolts from transmission bell | ||
| *BA27.40-P-1008-01A | |||
| 3 | Remove cover (2) from crankcase | ||
| Checking | |||
| 4 | Check splines of ring gear for drive plate | ↓ |
|
| Engine 272, 273 | AR03.30-P-8001SX | ||
| Engine 157, 276, 278 | AR03.30-P-8001MM | ||
| Figure | |||
| Risk of injury caused by moving parts that can pinch, crush or, in extreme cases, even sever extremities | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| 5 | Insert retaining lock (01) into access opening | ||
| Fig 3 | |||
| 6 | Remove in the reverse order |
HOUSING
| Number | Designation | Transmission 722.9 | ||
|---|---|---|---|---|
| BA27.40-P-1008-01A | Screw/bolt, automatic transmission to engine | M10X40 | Nm | 38 |
| M10X90 | Nm | 38 | ||
| M12 | Nm | - | ||
FRONT AXLE TRANSMISSION
| Number | Designation | Model 216 | Model 221 | |
|---|---|---|---|---|
| BA33.30-P-1009-03G | Collar bolt, shield to shield bracket | Nm | 8 | 8 |
