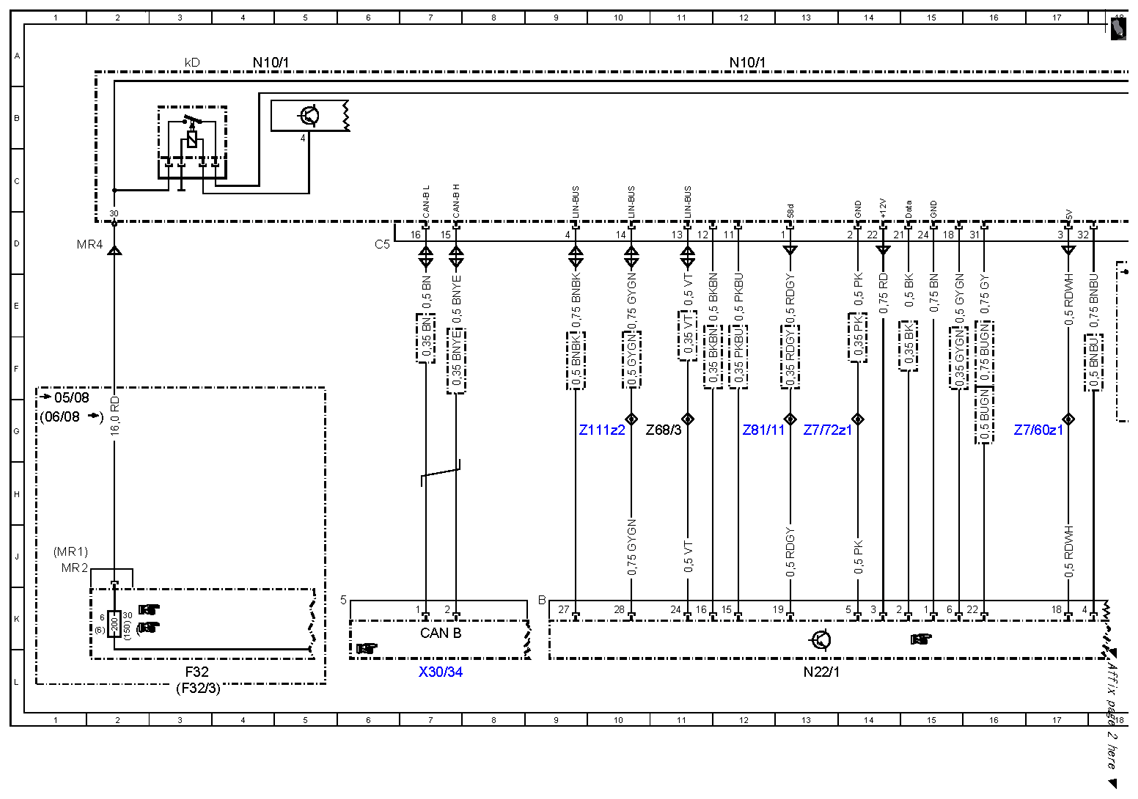

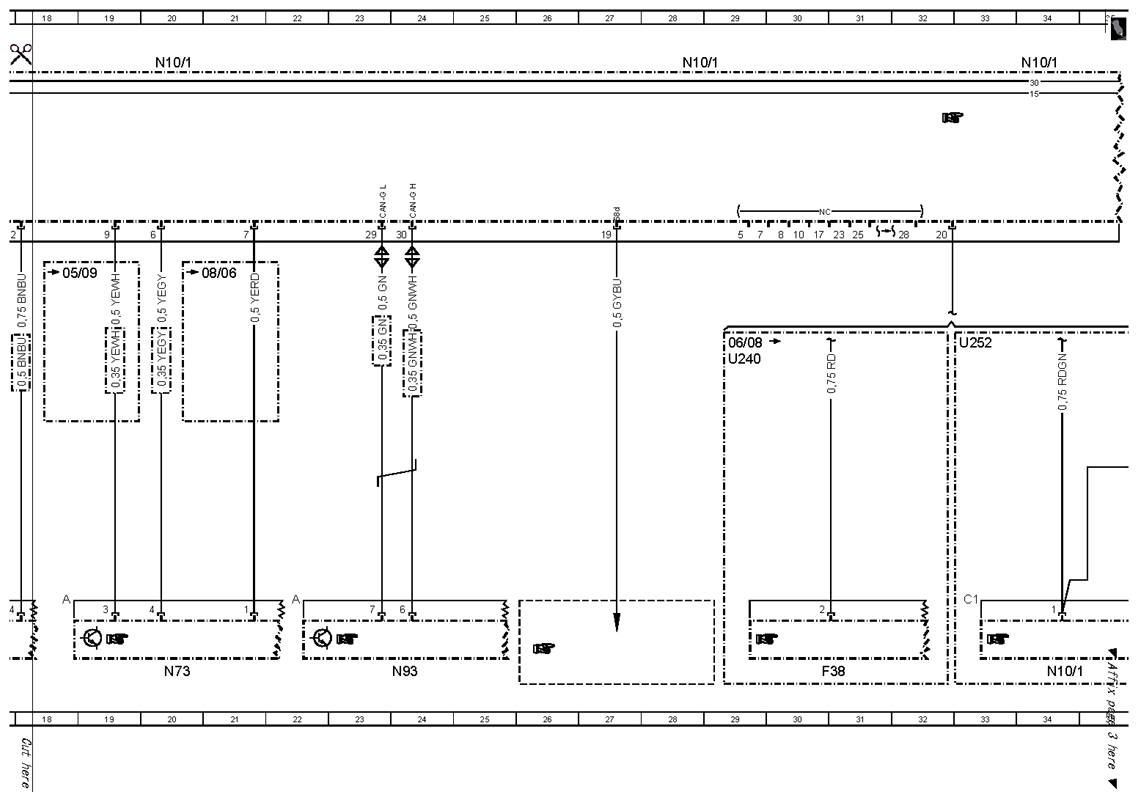

| CAN B |
Interior CAN |
7K |
| F32 |
Front prefuse |
3L |
| F32/3 |
Engine compartment prefuse box |
3L |
| F32/3f6 |
Fuse 6 |
2K |
| F32f6 |
Fuse 6 |
2K |
| F38 |
Backup battery fuse |
30L |
| N10/1 |
Front SAM control unit with fuse and relay module |
4A |
| N10/1 |
Front SAM control unit with fuse and relay module |
12A |
| N10/1 |
Front SAM control unit with fuse and relay module |
20A |
| N10/1 |
Front SAM control unit with fuse and relay module |
34A |
| N10/1 |
Front SAM control unit with fuse and relay module |
34L |
| N10/1 |
Front SAM control unit with fuse and relay module |
28A |
| N10/1kD |
Circuit 15 (2)/spare 1 relay (changeover contact) |
3A |
| N22/1 |
AAC [KLA] control unit |
13L |
| N73 |
EIS [EZS] control unit |
20L |
| N73 |
EIS [EZS] control unit |
37L |
| N93 |
Central gateway control unit |
24L |
| U240 |
Valid for all except ECO start/stop function |
29F |
| U252 |
Valid for ECO start/stop function |
33F |
| X30/34 |
Interior CAN/cockpit voltage distributor connector |
7L |
| Z111z2 |
Voltage supply connector sleeve |
10G |
| Z68/3 |
AC LIN bus data connector sleeve |
11G |
| Z7/60z1 |
5V output connector sleeve (solder connector in wiring harness) |
17G |
| Z7/72z1 |
COC nozzles and sensors sensor ground connector sleeve |
13G |
| Z81/11 |
Front passenger circuit 58d connector sleeve |
12G |
