Wiring diagram SAM control module with front fuse and relay module (N10/1) - PE54.21-U-2106-97SAA

Code: Designation: Position:
B14 Outside temperature display temperature sensor 10L
B31/1 AAC [KLA] multifunction sensor 16L
B32/2 AAC [KLA] 4-way sun sensor 18L
B95 Battery sensor 21L
E6/1 Left front side marker lamp {{USA}} 30L
E6/2 Right front side-marker lamp {{USA}} 32L
F32 Front prefuse 3L
F32/3 Engine compartment prefuse box 3L
F32/3f6 Fuse 6 2K
F32f6 Fuse 6 2K
M13 Coolant circulation pump 28L
M20/1 Steering column in/out motor 39L
M20/2 Steering column up/down motor 41L
M5/1 Windshield washer fluid pump 25L
M5/2 HCS [SRA] pump 24L
N10/1 Front SAM control unit with fuse and relay module 4A
N10/1 Front SAM control unit with fuse and relay module 12A
N10/1 Front SAM control unit with fuse and relay module 20A
N10/1 Front SAM control unit with fuse and relay module 28A
N10/1 Front SAM control unit with fuse and relay module 36A
N10/1 Front SAM control unit with fuse and relay module 41A
N10/1kD Circuit 15 (2)/spare 1 relay (changeover contact) 3A
N80 Steering column module 36L
R2/11 Washer nozzle hose heater 26L
S10/2 Right front brake pad contact sensor 6L
S10/2x1 Right front brake pad contact sensor connector 6J
S11 Brake fluid indicator switch 11L
S41 Coolant level indicator switch 9L
S42 Windshield washer fluid level indicator switch 8L
U252 Valid for ECO start/stop function 19G
U252 Valid for ECO start/stop function 19G
U914 Valid for engines using water valve 12F
U968 Valid for mild hybrid drive 23G
W15/1 Ground (right footwell) 30G
W3/2 Ground (left front wheelhouse) 25G
W3/2 Ground (left front wheelhouse) 27L
W34 Ground (left footwell) 33G
X73/2 Coolant circulation pump connector 28G
Y19/2 AC water valve 13L
Z110/1 AC bus solder terminal 15G
Z110/3 AC bus solder terminal 16G
Z111/1 AC 12V solder terminal 15G

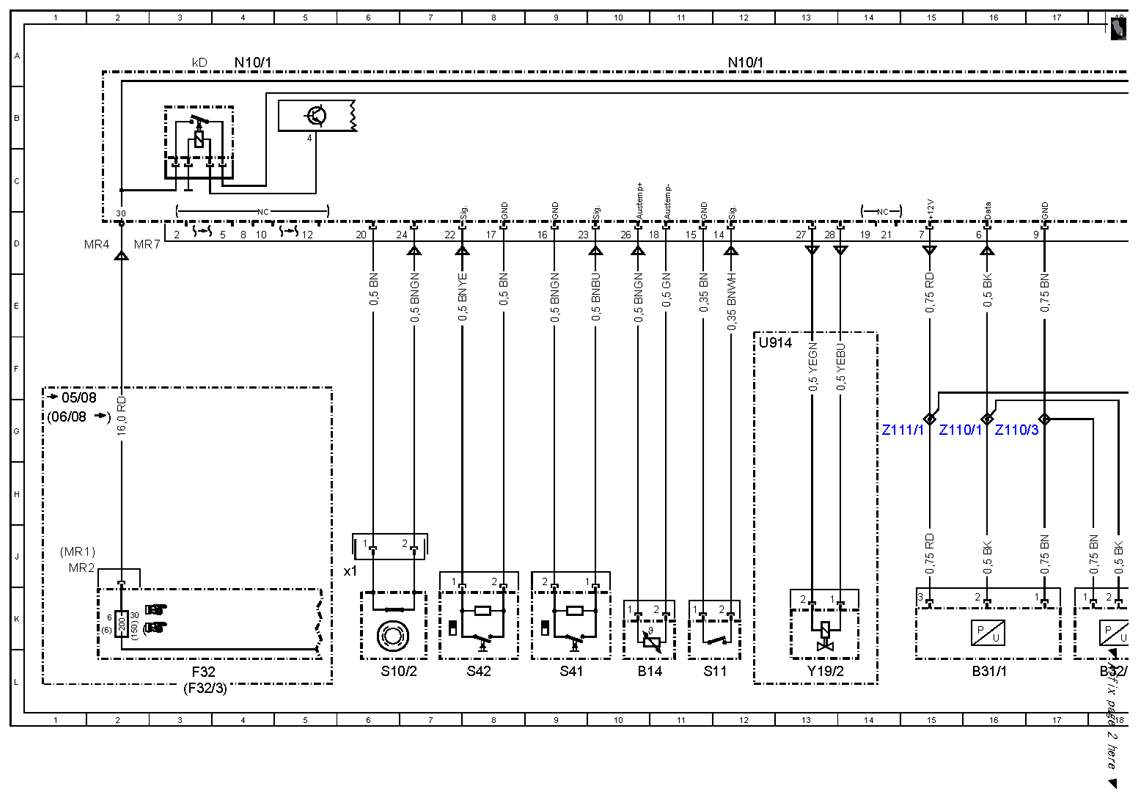

Fig 1: SAM Control Module With Front Fuse And Relay Module (N10/1) - Wiring Diagram (1 Of 3)
G10127914Courtesy of MERCEDES-BENZ USA

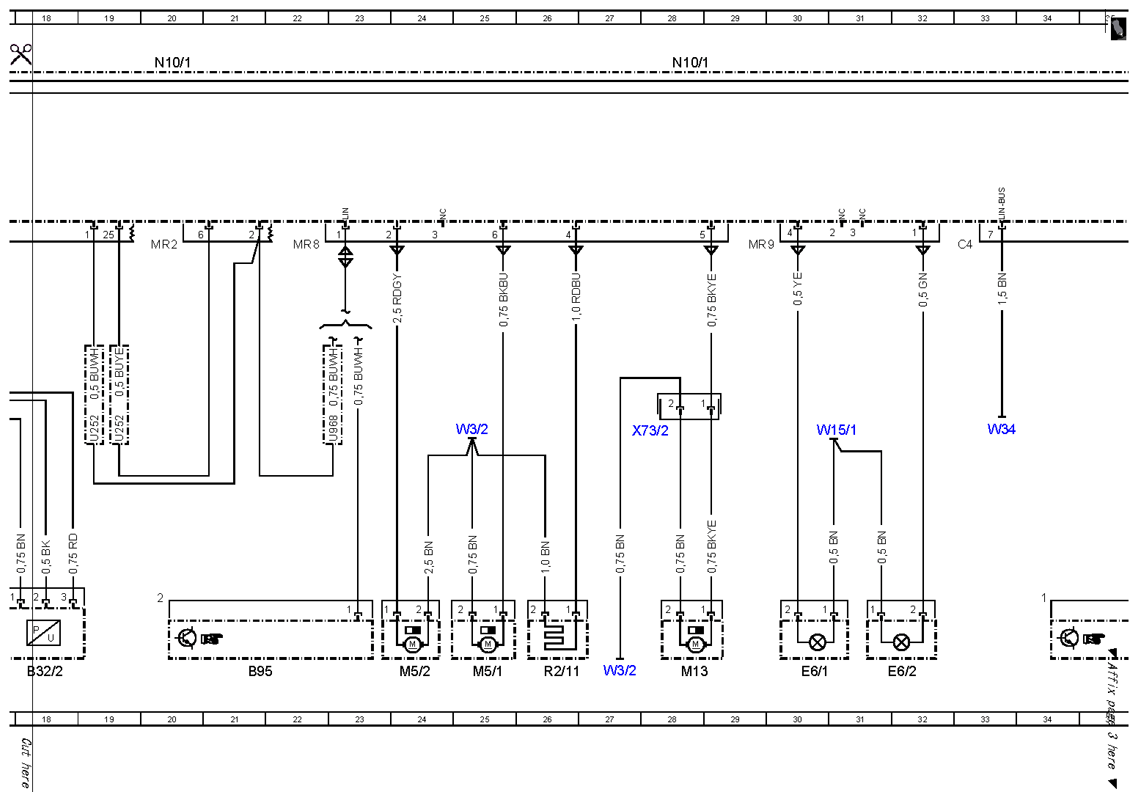

Fig 2: SAM Control Module With Front Fuse And Relay Module (N10/1) - Wiring Diagram (2 Of 3)
G10127915Courtesy of MERCEDES-BENZ USA

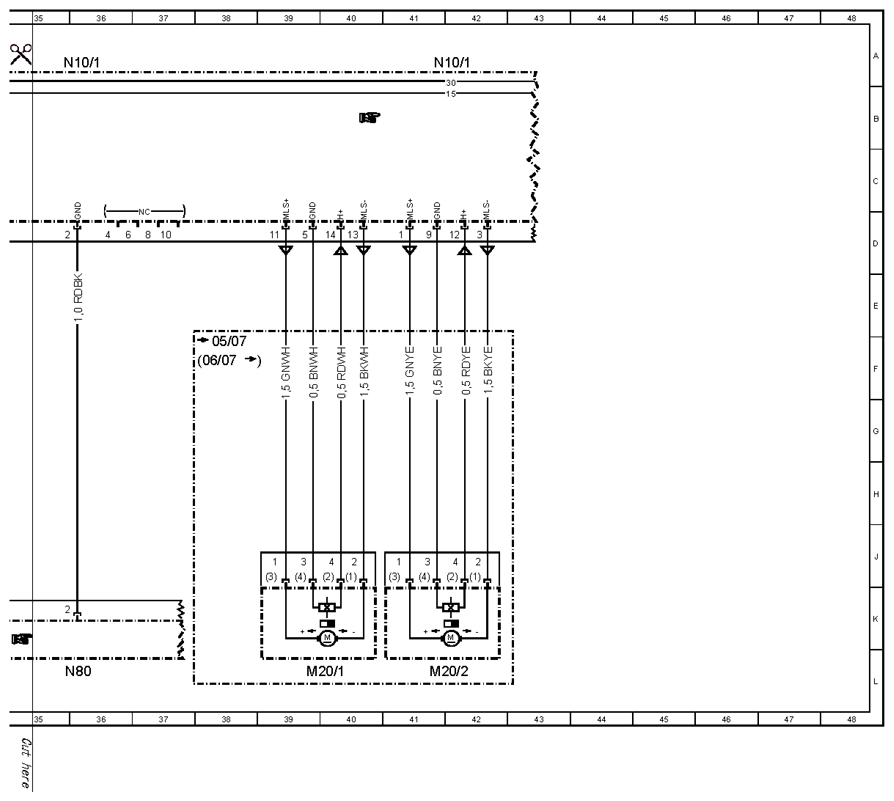

Fig 3: SAM Control Module With Front Fuse And Relay Module (N10/1) - Wiring Diagram (3 Of 3)
G10127916Courtesy of MERCEDES-BENZ USA
