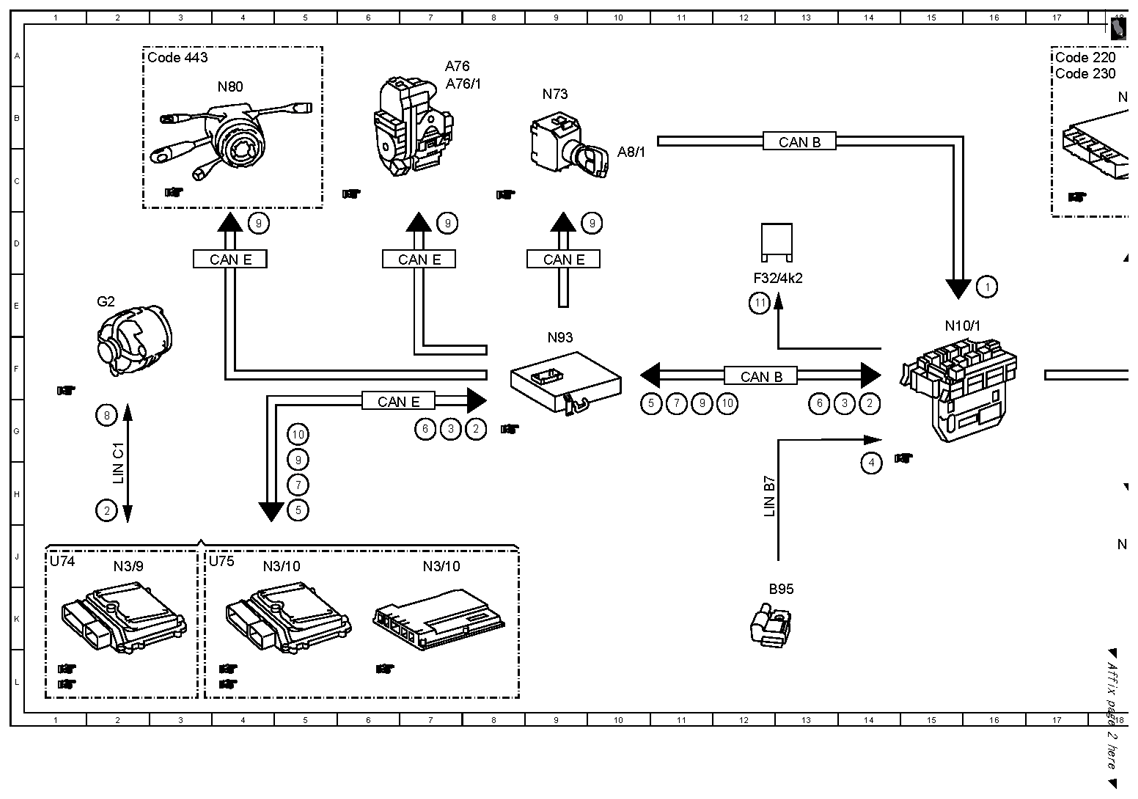

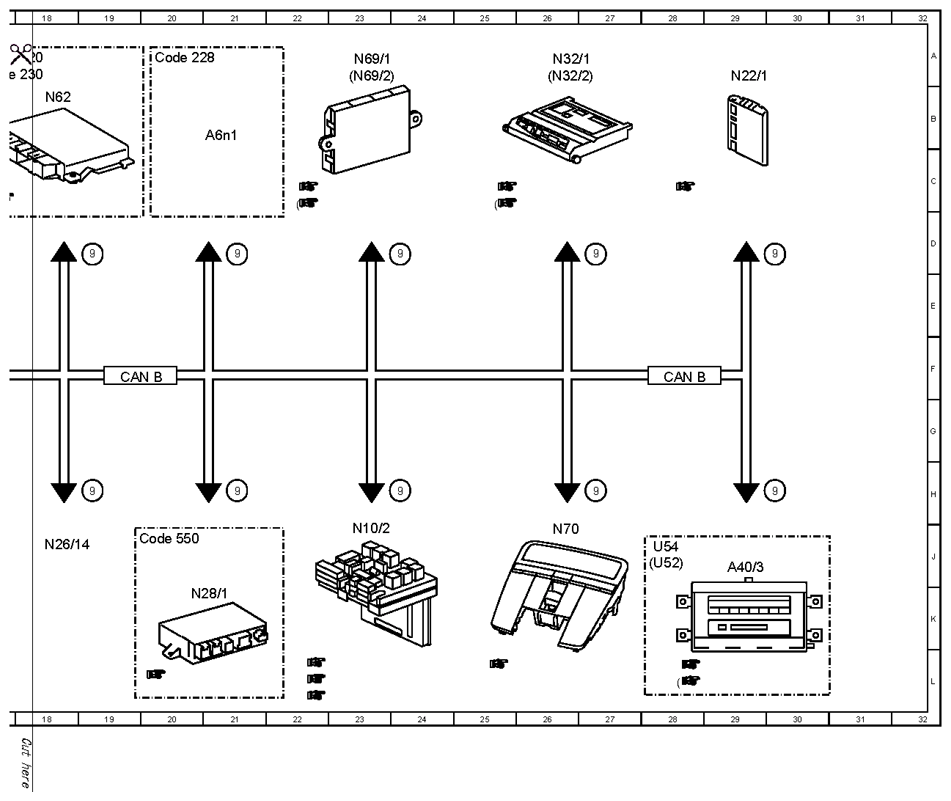

| 1 |
Circuit 15, status |
16D |
| 10 |
Idle speed increase, request |
5G |
| 10 |
Idle speed increase, request |
12F |
| 11 |
Quiescent current cutout relay, actuation |
12D |
| 2 |
Circuit 61, status |
8G |
| 2 |
Circuit 61, status |
2H |
| 2 |
Circuit 61, status |
14G |
| 3 |
Engine speed, signal |
14G |
| 3 |
Engine speed, signal |
7G |
| 4 |
Battery sensor, signal |
14H |
| 5 |
On-board electrical system limp-home mode, signal |
10G |
| 5 |
On-board electrical system limp-home mode, signal |
5H |
| 6 |
Alternator operating rate, signal |
7G |
| 6 |
Alternator operating rate, signal |
13G |
| 7 |
Alternator, request |
11G |
| 7 |
Alternator, request |
5H |
| 8 |
Alternator, actuation |
2G |
| 9 |
Consumer shutoff, request |
5H |
| 9 |
Consumer shutoff, request |
11G |
| 9 |
Consumer shutoff, request |
4D |
| 9 |
Consumer shutoff, request |
7D |
| 9 |
Consumer shutoff, request |
10D |
| 9 |
Consumer shutoff, request |
18D |
| 9 |
Consumer shutoff, request |
18H |
| 9 |
Consumer shutoff, request |
21D |
| 9 |
Consumer shutoff, request |
21H |
| 9 |
Consumer shutoff, request |
23D |
| 9 |
Consumer shutoff, request |
23H |
| 9 |
Consumer shutoff, request |
27D |
| 9 |
Consumer shutoff, request |
27H |
| 9 |
Consumer shutoff, request |
30D |
| 9 |
Consumer shutoff, request |
30H |
| A40/3 |
COMAND control unit |
29J |
| A6n1 |
STH or HB control unit |
21C |
| A76 |
Left front reversible emergency tensioning retractor |
7A |
| A76/1 |
Right front reversible emergency tensioning retractor |
7A |
| A8/1 |
Transmitter key |
10C |
| B95 |
Battery sensor |
12J |
| CAN B |
Interior CAN |
19F |
| CAN B |
Interior CAN |
28F |
| CAN B |
Interior CAN |
12F |
| CAN B |
Interior CAN |
13B |
| CAN E |
Chassis CAN |
3D |
| CAN E |
Chassis CAN |
6D |
| CAN E |
Chassis CAN |
9D |
| CAN E |
Chassis CAN |
6G |
| Code 220 |
PARKTRONIC (PTS) |
17A |
| Code 228 |
Stationary heater |
20A |
| Code 230 |
Exclusive parking assist |
17A |
| Code 443 |
Steering wheel heater |
3A |
| Code 550 |
Trailer hitch |
20J |
| F32/4k2 |
Quiescent current cutout relay |
12D |
| G2 |
Alternator |
2E |
| LIN B7 |
On-board electrical system LIN |
12G |
| LIN C1 |
Drive train LIN |
2G |
| N10/1 |
Front SAM control unit with fuse and relay module |
15E |
| N10/2 |
Rear SAM control unit with fuse and relay module |
23J |
| N22/1 |
AAC [KLA] control unit |
29A |
| N26/14 |
Special vehicle multifunction control unit (SVMCU [MSS]) |
18J |
| N28/1 |
Trailer recognition control unit |
20J |
| N3/10 |
ME-SFI [ME] control unit |
4J |
| N3/10 |
ME-SFI [ME] control unit |
7J |
| N3/9 |
CDI control unit |
2J |
| N32/1 |
Left front seat control unit |
26A |
| N32/2 |
Right front seat control unit |
26A |
| N62 |
PTS control unit |
18B |
| N69/1 |
Left front door control unit |
23A |
| N69/2 |
Right front door control unit |
23A |
| N70 |
Overhead control panel control unit |
26J |
| N73 |
EIS [EZS] control unit |
9B |
| N80 |
Steering column module |
4B |
| N93 |
Central gateway control unit |
9E |
| U52 |
Valid for Japan |
28J |
| U54 |
Valid for all except Japan |
28J |
| U74 |
Valid for diesel engines |
1J |
| U75 |
Valid for gasoline engines |
4J |
