Charge battery - AR54.10-P-1130SY

Model 216.3 as of 6/2/08

Model 216.3 up to 6/1/08 with code 809 (Model year 2009)

Model 221.0/1 as of 6/2/08

Model 221.0/1 up to 6/1/08 with code 809 (Model year 2009)

Shown on model 221

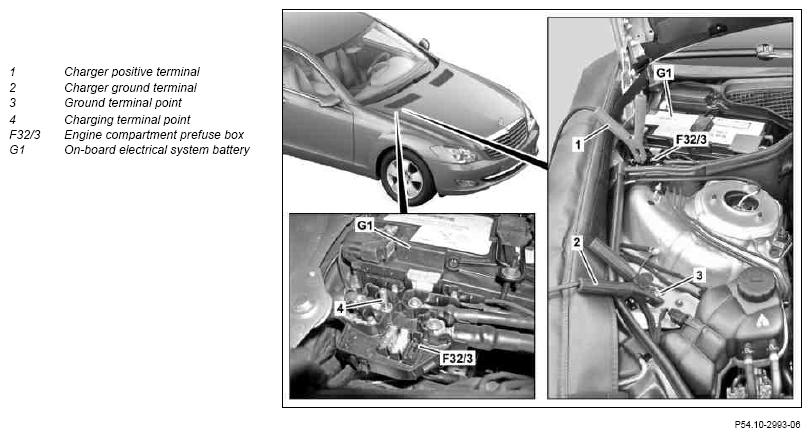

Fig 1: Identifying Charge Battery Components - Shown On Model 221

Courtesy of MERCEDES-BENZ USA

	Check
1	Check condition of battery		AR54.10-P-1129SY
	Remove
2	Remove cover of engine compartment prefuse box (F32/3)
	Charging
3	Connect charger positive terminal (1) to charging terminal point (4) of engine compartment prefuse box (F32/3)
4	Connect charger ground terminal (2) to ground terminal point (3) on wheel well and switch on charger	Do not reverse polarity. Risk of short circuit! Use a charger with at least 30 A charging current and 13.5 V charging voltage, otherwise the on-board electrical system battery could be partially discharged.
5	Charge on-board electrical system battery (G1)
	000 588 00 81 00 Charger		WS54.00-P-0037B
		The battery charging period is dependent on the charge level of the discharged battery. The battery must be charged using an approved charger. The battery is sufficiently charged when the displayed charging current shown is < 25A material.
6	Disconnect battery charger	Switch off charger beforehand. Risk of arcing.
	Check
7	Check battery		AR54.10-P-1129SY
	Install
8	Install cover of engine compartment prefuse box (F32/3)
