Retrofitting electronic vehicle log - AZ54.61-P-0001M

MODEL 220 except CODE (596) Heat-insulating glass except CODE (855) TELE AID with control unit in glove box

Shown on model 211

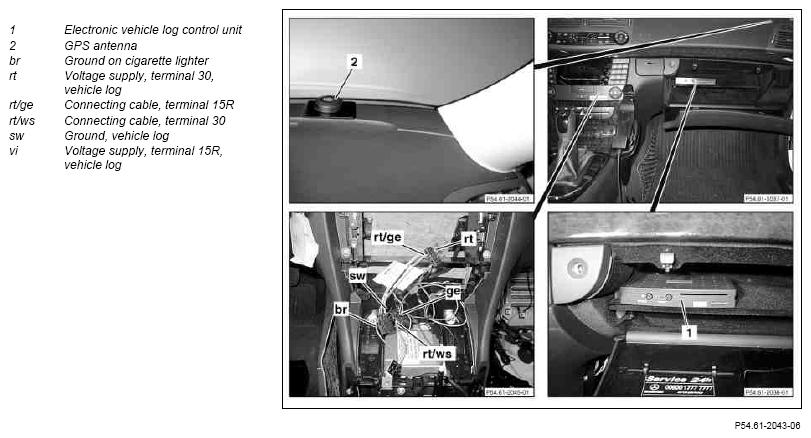

Fig 1: Retrofitting Electronic Vehicle Log - Shown On Model 211

Courtesy of MERCEDES-BENZ USA

	Remove
1	Connect no load current retention unit		*WH58.30-Z-1012-09A
	Risk of explosion  caused by escaping oxyhydrogen gas. Risk of injury  caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries  caused by short circuit. Risk of poisoning  caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices	No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground. Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
2	Disconnect ground cable of battery
			AR54.10-P-0003I
	Notes on battery	All models	AH54.10-P-0001-01A
3	Remove radio or navigation control panel
4	Remove ashtray from front center console
			AR68.20-P-2400M
5	Unclip paneling on right side of instrument panel
6	Unclip right-hand knee bolster
	Install
7	Retrofit antenna for global positioning system (GPS)		AN82.61-P-7474-04TT
8	Retrofit wiring harness for electronic vehicle log		AZ54.61-P-0001-02T
9	Retrofitting control unit for electronic vehicle log	Installation in the glove compartment.	AZ54.61-P-0001-03T
10	Fit remaining parts to vehicle
11	Performing function check on electronic vehicle log		AZ54.61-P-0001-04T
