Removing and installing molding on instrument panel - AR68.10-P-1180M

MODEL 220

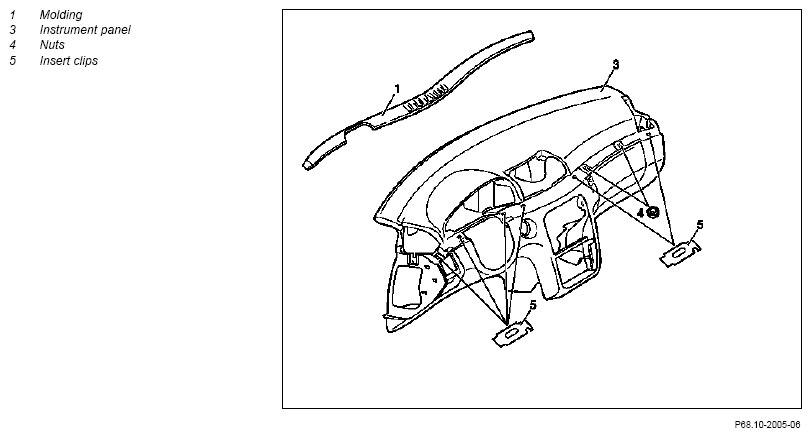

Fig 1: Identifying Molding On Instrument Panel Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

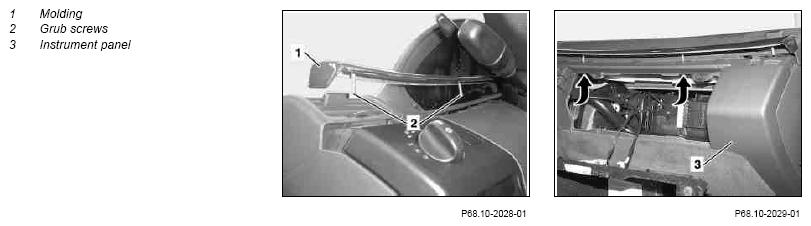

Fig 2: Identifying Molding On Instrument Panel Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Removal, installation
1	Remove glove compartment		AR68.10-P-1400M
2	Unscrew mounting nuts (4) for molding (1)	Molding (1) is screwed onto instrument panel (3) from rear in area of glove compartment (arrows)
3	Pry grub screws (2) on molding (1) out of insert clips on instrument panel (3) with long wedge	Installation:  Replace defective insert clips on instrument panel	Figure
4	Disconnect electrical connectors on rear of molding (1)
5	Install in opposite order

Fig 3: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
