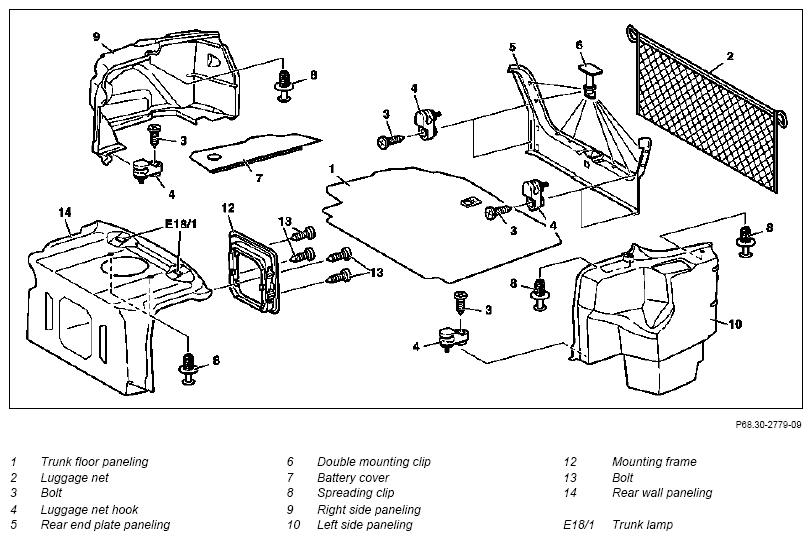

Remove/install paneling in trunk. - AR68.30-P-4600M
MODEL 215.3, 220.0/1
Shown on model 220.0
Code 550 trailer hitch
Code 308 refrigerator box in center rear backrest
Code 282a ski bag (through-loading feature)
| Remove/install | |||
| 1 | Remove trunk floor paneling (1) | ||
| 2 | Unhook luggage net (2) | ||
| 3 | Unscrew bolt (3, 4 each) from luggage net hooks (4, 4 each) from inside of rear end paneling (5). | ||
| 4.1 | Pull double mounting clip (6, 8 each) out of rear end paneling (5) | Model 220.0/1. | |
| 4.2 | Pull double mounting clip (6, 4 each) out of rear end paneling (5) | Model 215.3. | |
| 5 | Remove rear end paneling (5) | ||
| 6.1 | Remove battery cover (7) | Model 220.0/1. | |
| 7 | Pull spreading clip (8) out at top of right side paneling (9) | ||
| 8 | Unscrew bolt (3) from luggage net hook (4) at bottom of right side paneling (9) | ||
| 9 | Remove right side paneling (9). | ||
| 10.1 | Remove manual control lever for mechanically pivoting trailer hitch | With code 550 trailer hitch |
AR31.11-P-8010M |
| 11 | Pull spreading clips (8, 2 each) out at top of left side paneling (10) | ||
| 12 | Pull bolt (3) for luggage net hook (4) from bottom of left side paneling (10) | ||
| 13 | Remove left side paneling (10) | ||
| 14.1 | Remove refrigerator box | With code 308 refrigerator box in center rear backrest | AR86.61-P-1010MP |

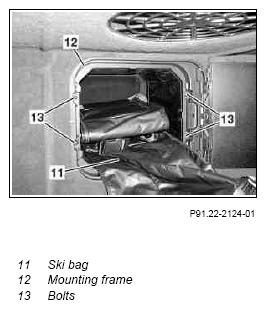

| 14.2 | Unclip ski bag from mounting frame (12) | With code 282a ski bag (through-loading feature). | |
| 15.1 | Unscrew bolts (13, 4 each) and remove mounting frame (12) from rear wall paneling (14). | With code 308 refrigerator box in center rear backrest, or code 282a ski bag (through-loading feature). | |
| 16 | Unclip trunk lamp (E18/1) from rear wall paneling (14) and disconnect electrical connector | Figure | |
| 17 | Pull spreading clips (8, 2 each) out at top of rear wall paneling (14) | ||
| 18.1 | Unclip rear backrest refrigerator box connector (A39/1x1) from rear wall paneling (14) | With code 308 refrigerator box in center rear backrest | |
| 19 | Remove rear wall paneling (14) | ||
| 20 | Install in the reverse order |
