Remove/installing front door power window motor - AR72.29-P-1860SX
MODEL 221.0
MODEL 221.1 except CODE (Z07) Top protection
| Remove/install | |||
| 1 | Remove door lining from left or right front door | AR72.10-P-1000SX | |

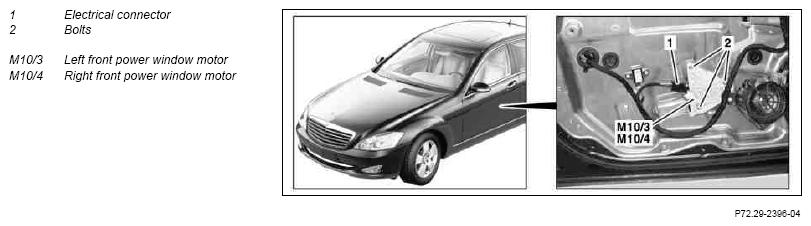

| 2 | Disconnect electrical connector (1) | ||
| 3 | Remove bolts (2) | *BA72.10-P-1010-01Q | |
| 4 | Loosen left front power window motor (M10/3) or right front power window motor (M10/4) and remove | Figure | |
| 5 | Install in the reverse order | ||
| 6 | Normalize power window motor |
FRONT DOOR
| Number | Designation | Model 221 | |
|---|---|---|---|
| BA72.10-P-1010-01Q | Bolt, power window motor to door module | Nm | 3 |
