Remove/install rear door window lifter - AR72.12-P-1810SX

MODEL 221.0

MODEL 221.1 except CODE (Z07) Top protection

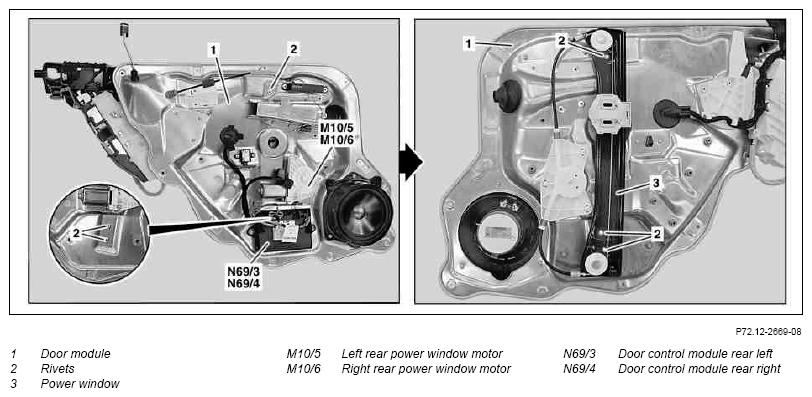

Fig 1: Identifying Rear Door Window Lifter Remove/Install Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

17.8.06

Tool changed

Steps 4.1, 4.2

	Remove/install
1	Remove door module (1) from left and right rear door		AR72.12-P-0103SX
2	Remove left rear power window motor (M10/5) or right rear power window motor (M10/6)		AR72.29-P-1880SX
3	Loosen left rear door control unit (N69/3) or right rear door control unit (N69/4) from door module (1) until rivets (2) are accessible.		*BA72.12-P-1012-01M
4.1	Drill out rivet heads on rivets (2) with Ø 6.5 mm bit.	When initially removing power window (3). Pliers
4.2	Cut rivet heads out of rivets (2).	When repeatedly removing power window (3).
			Fig 2
		Fasten power window (3) to door module (1) with new rivets (2). Pliers	Fig 3
5	Remove power window (3) from door module (1).
6	Install in the reverse order

REAR DOOR

Number	Designation		Model 221
BA72.12-P-1012-01M	Bolt, door control unit to door module	Nm	8

Fig 2: Identifying Rivet Milling Cutter (171 589 00 39 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Milling Bit Crown (171 589 00 39 01)

Courtesy of MERCEDES-BENZ USA
