Remove/install armrest on rear door - AR72.12-P-1020SX
MODEL 221.0
MODEL 221.1 except CODE (Z07) Top protection
Courtesy of MERCEDES-BENZ USA
  |

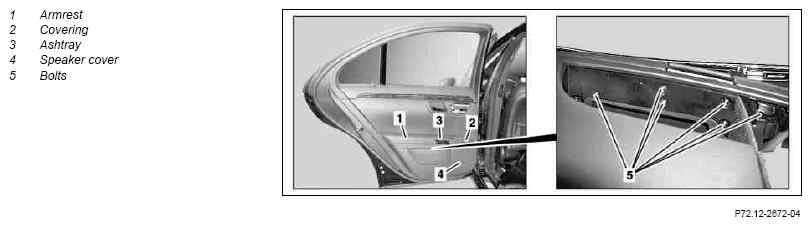

Remove/install |
|
|
| 1 |
Open rear door |
|
|
| 2 |
Remove speaker cover (4) |
|
|
| 3 |
Remove bolts (5) |
|
|
| 4 |
Raise covering (2) and ashtray (3). |
|
|
| 5 |
Slide armrest (1) approx. 1 to 2 cm toward front and remove |
|
|
| 6 |
Install in the reverse order |
|
|
