Notes on working in engine compartment - AH60.00-P-0042-01RG
WARNING: This page does not describe the selected car, but rather 202 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 190

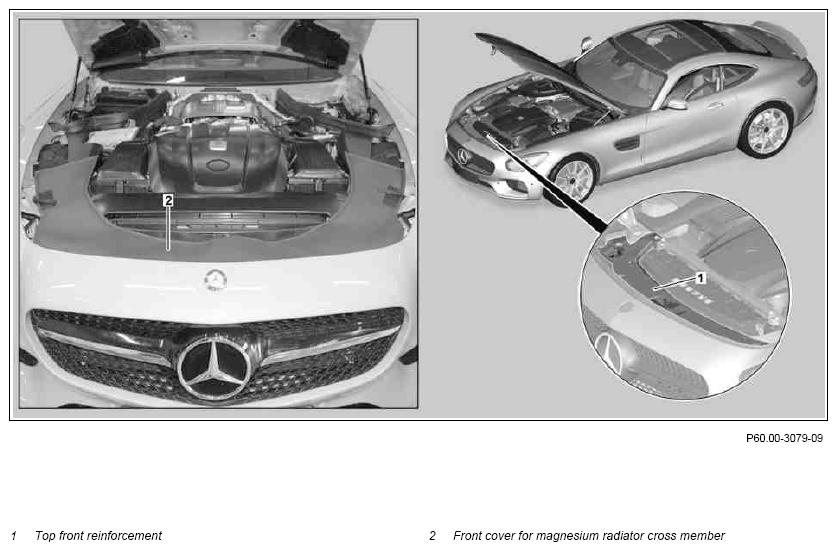

When performing work in the engine compartment, it is essential to use the front cover for the magnesium radiator cross member (2) in order to protect the top front reinforcement (1). Fender/rear end cover gotis://K_68.0_01.0
The surface coating of the top front reinforcement (1) which is made of magnesium can otherwise be damaged.
In the event of damage, repair by means of post-repair refinishing is only permitted down to the magnesium base material. Replace the component in the event of any damage to the magnesium base material.
