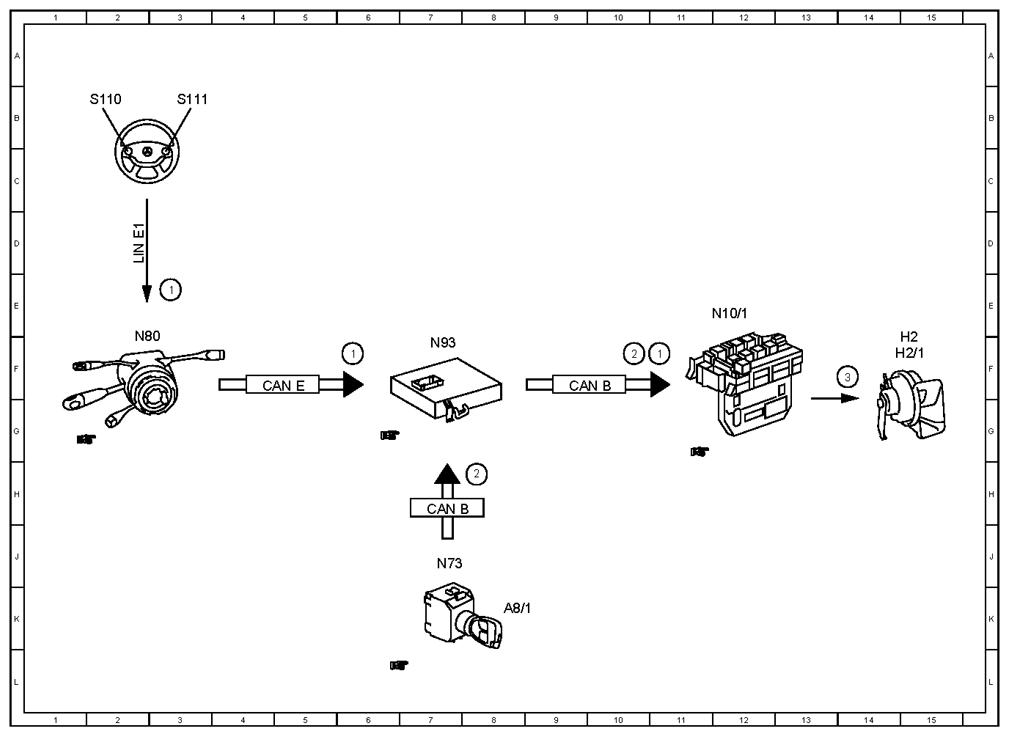

| 1 |
Fanfare horns, request |
3E |
| 1 |
Fanfare horns, request |
5F |
| 1 |
Fanfare horns, request |
11F |
| 2 |
Circuit 15, status |
8G |
| 2 |
Circuit 15, status |
10F |
| 3 |
Fanfare horns, actuation |
14F |
| A8/1 |
Transmitter key |
8J |
| CAN B |
Interior CAN |
7H |
| CAN B |
Interior CAN |
9F |
| CAN E |
Chassis CAN |
4F |
| H2 |
Left fanfare horn |
15E |
| H2/1 |
Right fanfare horn |
15F |
| LIN E1 |
Steering LIN |
2D |
| N10/1 |
Front SAM control unit with fuse and relay module |
12E |
| N73 |
EIS [EZS] control unit |
7J |
| N80 |
Steering column module |
2E |
| N93 |
Central gateway control unit |
7E |
| S110 |
Left multifunction steering wheel button group |
2B |
| S111 |
Right multifunction steering wheel button group |
3B |
